Docs.

The complete manual for IyziTrace. From initial setup to advanced developer configurations—all in one place.

IyziTrace Documentation

A comprehensive OpenTelemetry-native observability platform built as a Grafana plugin. Transform your telemetry data into actionable insights with powerful visualization, AI-driven analysis, and intelligent service mapping.

#Introduction

IyziTrace is a powerful observability platform designed to provide deep insights into your distributed systems. Built on OpenTelemetry standards and running as a Grafana plugin, it combines metrics, logs, and traces into a unified, intuitive interface.

Infrastructure Monitoring, Without the Heavy Lift

Collect metrics, logs, and traces in minutes. Zero-maintenance pipelines, transparent pricing, and deep context for faster debugging.

Platform Highlights:

  • 10s install time - Get up and running in seconds
  • 99.95% uptime - Enterprise-grade reliability
  • OpenTelemetry native - Built on open standards
  • Usage-based pricing - Transparent, predictable costs

What is IyziTrace?

IyziTrace offers:

  • Unified Observability: Seamlessly correlate metrics, logs, and traces
  • Service-Centric View: Understand your microservices architecture at a glance
  • Infrastructure Monitoring: Real-time insights into your hosts and containers
  • AI-Powered Analysis: Get intelligent recommendations and anomaly detection
  • Agent Management: Manage and monitor OpenTelemetry collectors remotely
  • Inventory Management: Track and discover all infrastructure entities and relationships
  • OpenTelemetry Native: Built on open standards for maximum compatibility

Why IyziTrace?

Observability Only You Need

No complex setups, no maintenance — all the context for your logs, metrics and traces.

  • Full-stack Infrastructure Overview: See servers, runtimes, services and operations in a single layered view. From CPU usage to business operations, IyziTrace gives you an instant, end-to-end snapshot of your system health.

    Full-stack Infrastructure Overview
    Full-stack Infrastructure Overview

  • Service Dependency Topology: Visualize all services and their dependencies as interactive service maps. Click any node to see details including infrastructure info, resources, health status, and connected applications.

    Service Dependency Topology
    Service Dependency Topology

  • Deep Service Performance: Drill into individual services to analyze latency percentiles (P50, P75, P90, P95, P99), throughput, Apdex scores, and operation rates with real-time performance charts.

    Deep Service Performance
    Deep Service Performance

  • Distributed Trace Analysis: Follow the complete journey of requests across services with detailed Gantt chart timelines, span attributes, and operation type filtering.

    Distributed Trace Analysis
    Distributed Trace Analysis

  • AI-Powered Insights: Get instant system health analysis, anomaly detection, and optimization recommendations from the AI Assistant with context-aware data analysis.

    AI-Powered Insights
    AI-Powered Insights

  • Agent Fleet Management: Manage and monitor your OpenTelemetry collectors with real-time topology views, configuration management, metrics dashboards, and centralized log collection.

    Agent Fleet Management
    Agent Fleet Management

Built for Modern Platforms

From Kubernetes to serverless, gain real-time visibility with zero heavy lifting:

Kubernetes & Containers

  • Autoscaling insights
  • Pod restart tracking
  • Resource bottleneck detection
  • OTel + kube integrations without the YAML jungle

APM & Backend Services

  • Latency, errors, throughput, and saturation in one place
  • Trace + log correlation makes RCA straightforward
  • Real-time performance monitoring

SLOs & Alerting

  • Define SLOs on any metric
  • Route alerts to Slack/PagerDuty
  • Reduce noise with multi-signal rules

Cost Under Control — No Surprises

Transparent pricing so you always know what you're paying for — no hidden fees, no guesswork, just predictable costs.

Price by Telemetry

Pay just for the telemetry you care about. Our pricing is transparent and based on how many logs, spans, and metric data points you send — not bytes stored or seat count. Send all the metadata you need without hidden costs.

Cost Control

Use OpenTelemetry agents and the OTEL Collector's pipelines to manage ingestion, downsampling, and routing. Keep costs predictable while retaining what matters.

World Class Observability

Our customers praise IyziTrace as a powerful platform with excellent user experience and support. IyziTrace simplifies observability for every developer, providing deep insights into logs, metrics, and traces — because details matter.

Architecture

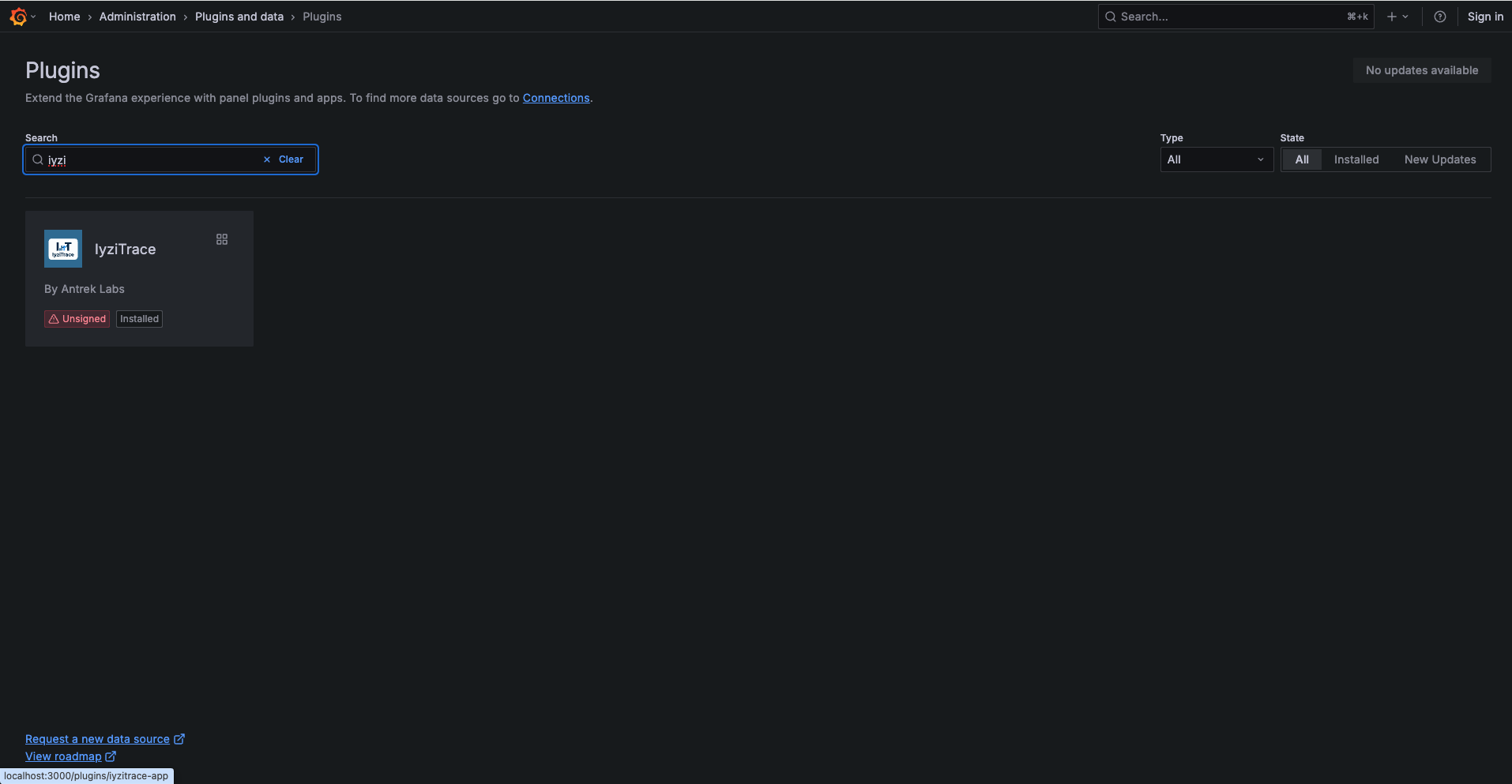

IyziTrace is deployed as a Grafana Plugin and connects to:

  • Tempo: For distributed tracing data
  • Loki: For log aggregation and querying
  • Prometheus: For metrics collection and querying

#Platform Features Gallery

IyziTrace provides a comprehensive set of features designed to give you complete visibility into your distributed systems:

Infrastructure & Service Topology

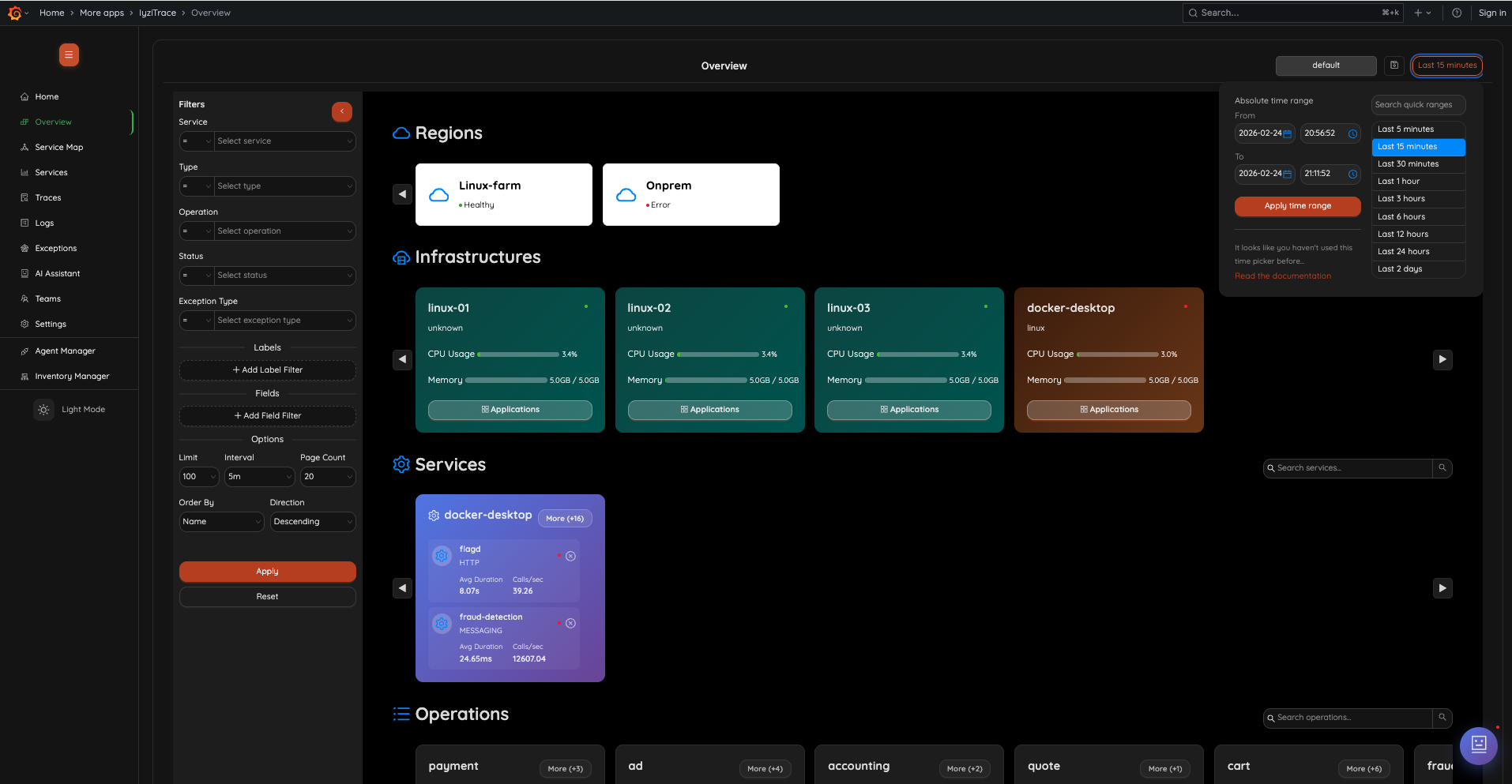

1. Overview – Regions & Infrastructures

Overview – Regions & Infrastructures
Overview – Regions & Infrastructures

See your entire infrastructure at a glance. The overview page presents regions, infrastructure hosts with CPU/memory metrics, services grouped by infrastructure, and operations — all in a single scrollable view with advanced filtering.

  • Regions with health status indicators
  • Infrastructure cards with real-time CPU & memory usage
  • Service cards grouped by infrastructure host
  • Operations grouped by service

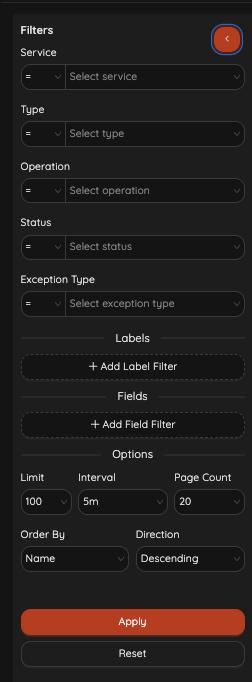

  • Full filter panel with service, type, operation, status, labels, and fields

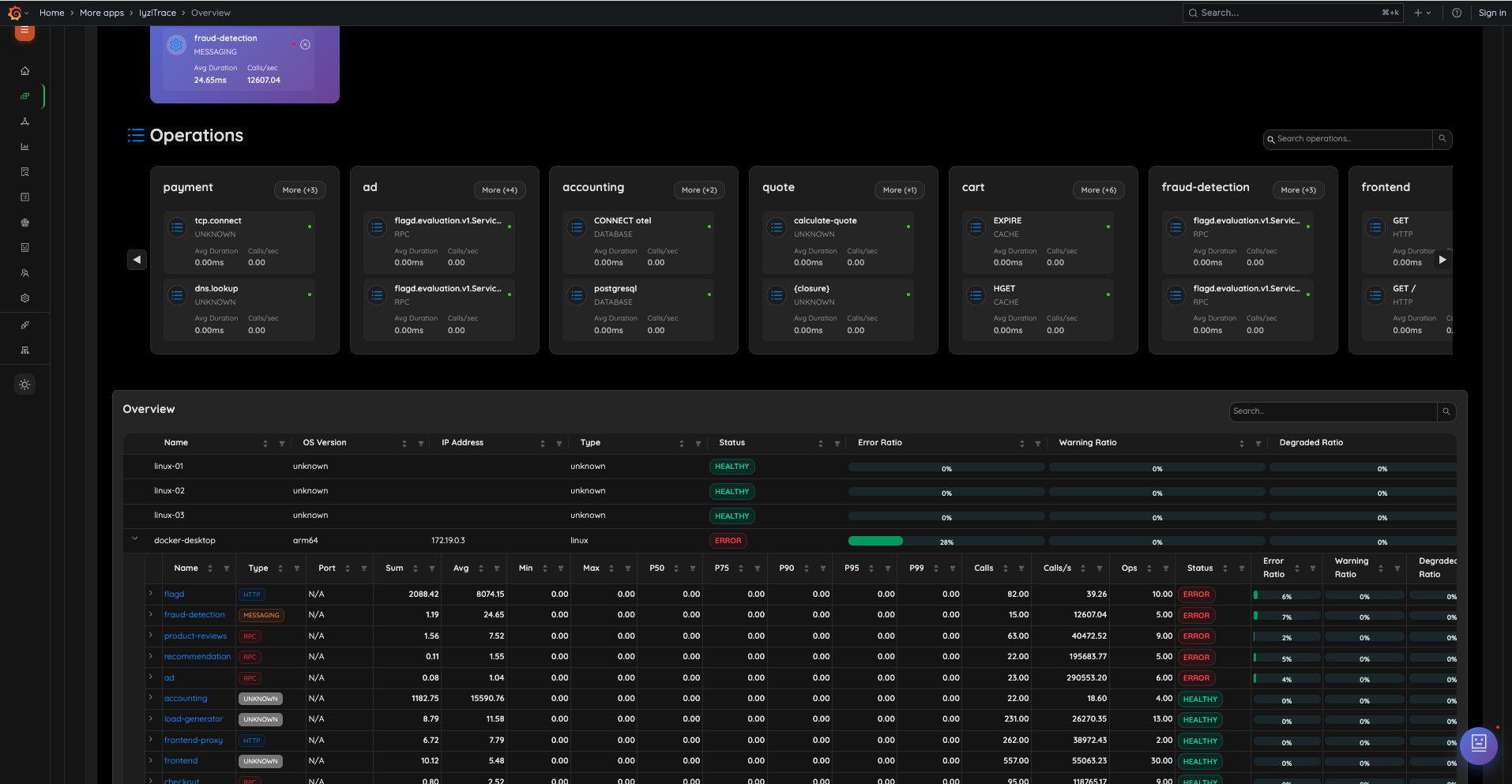

2. Overview – Operations & Data Table

Overview – Operations & Data Table
Overview – Operations & Data Table

Drill down into operation-level details and view all infrastructure data in a sortable, expandable table. Expand any infrastructure to see its services, and expand services to see operations with detailed metrics.

  • Operation cards grouped by service
  • Expandable data table with status, error/warning/degraded ratios
  • Per-service metrics: Type, Port, Avg, Min, Max, P50–P99, Calls, Calls/s, Operations

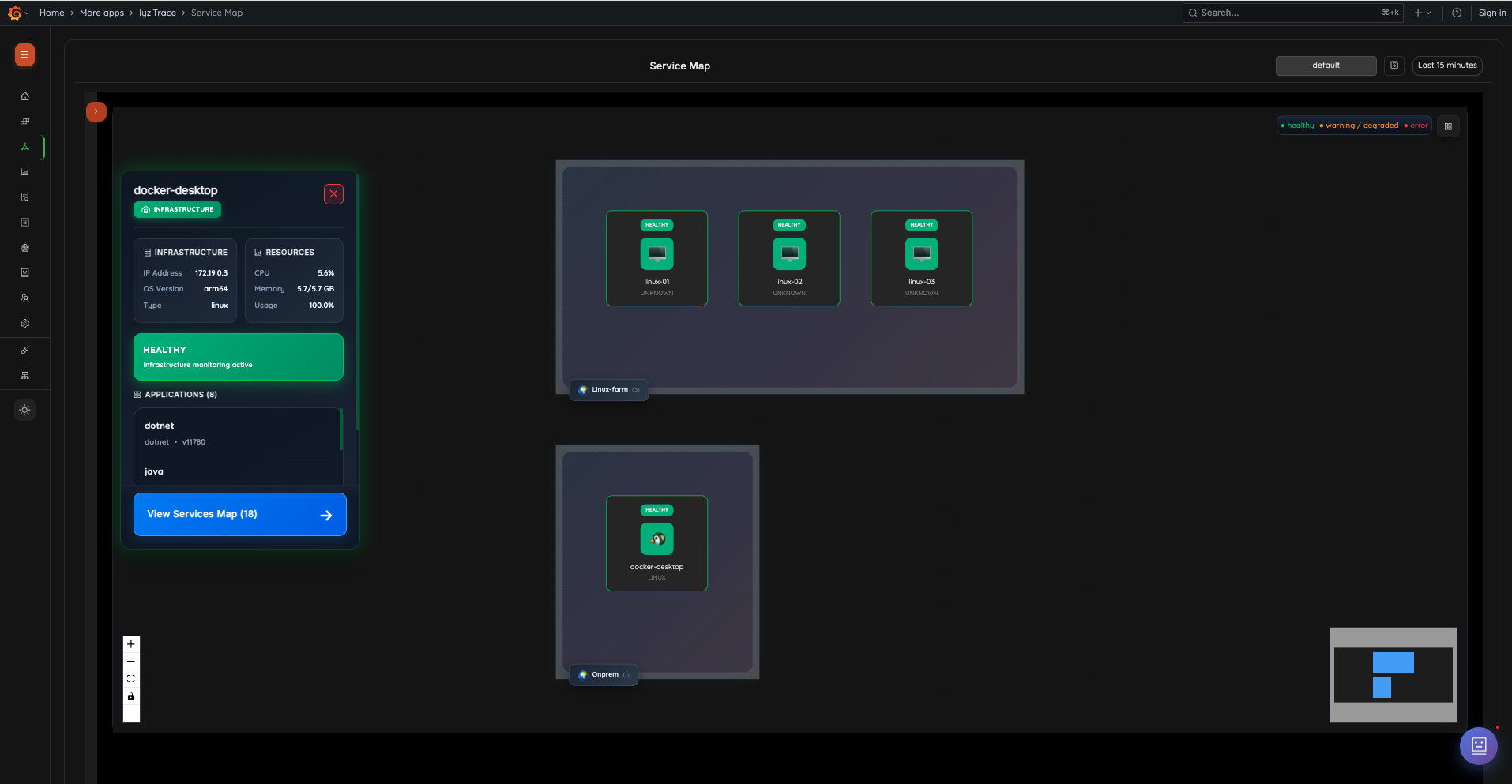

3. Service Map – Infrastructure Topology

Service Map – Infrastructure Topology
Service Map – Infrastructure Topology

Visualize your entire infrastructure topology with interactive region-based grouping. Click any infrastructure node to see its details including IP address, OS version, type, resource usage, health status, and connected applications.

  • Region-based infrastructure grouping
  • Infrastructure detail drawer with resources and applications
  • Health status indicators (healthy, warning/degraded, error)
  • Minimap for navigation

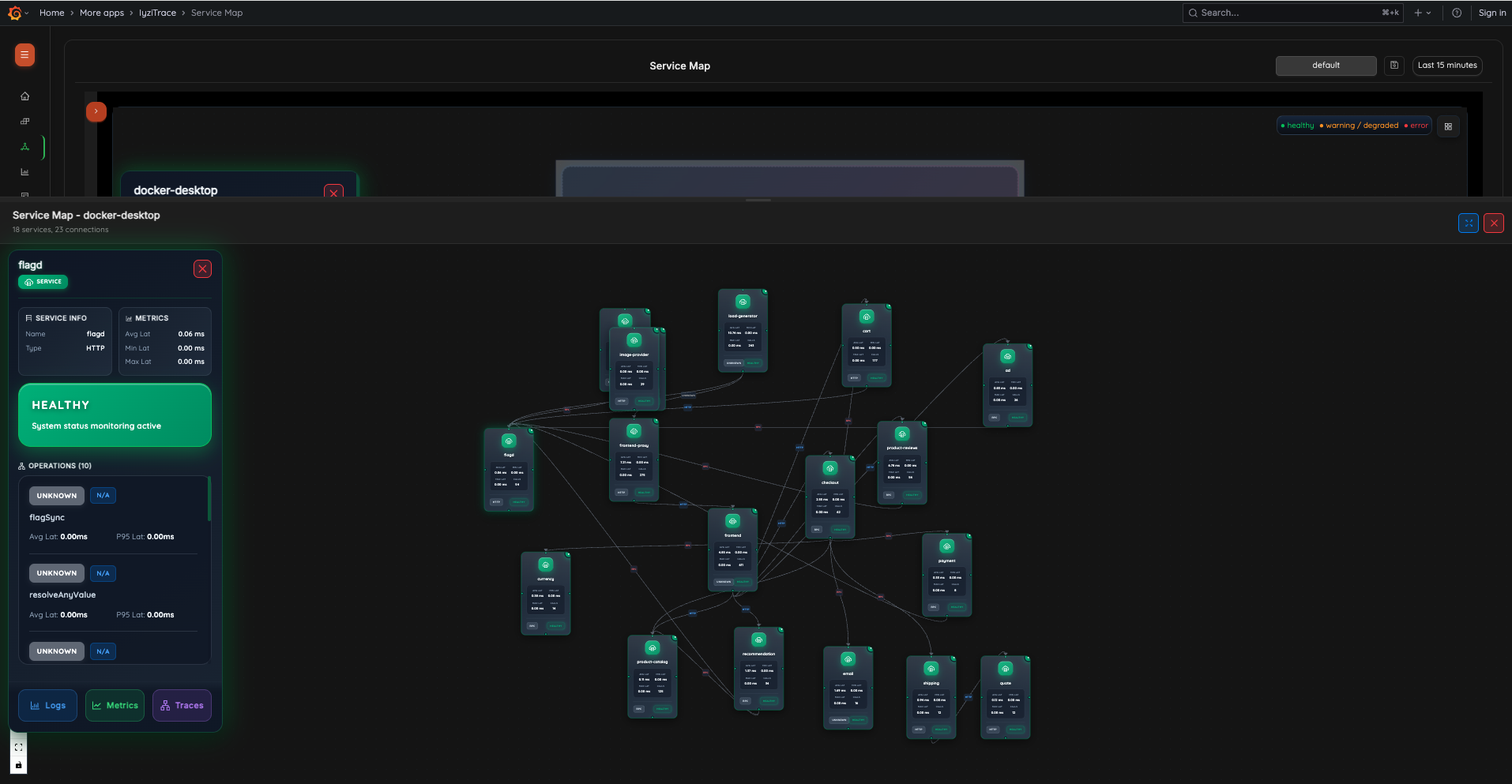

4. Service Map – Dependency Graph

Service Map – Dependency Graph
Service Map – Dependency Graph

View the complete service dependency graph for any infrastructure. See all services and their interconnections with metrics including average latency, min/max latency, calls count, and status badges.

  • Full service dependency visualization
  • Service detail drawer with operations list
  • Quick navigation to Logs, Metrics, and Traces
  • Fullscreen mode for detailed analysis

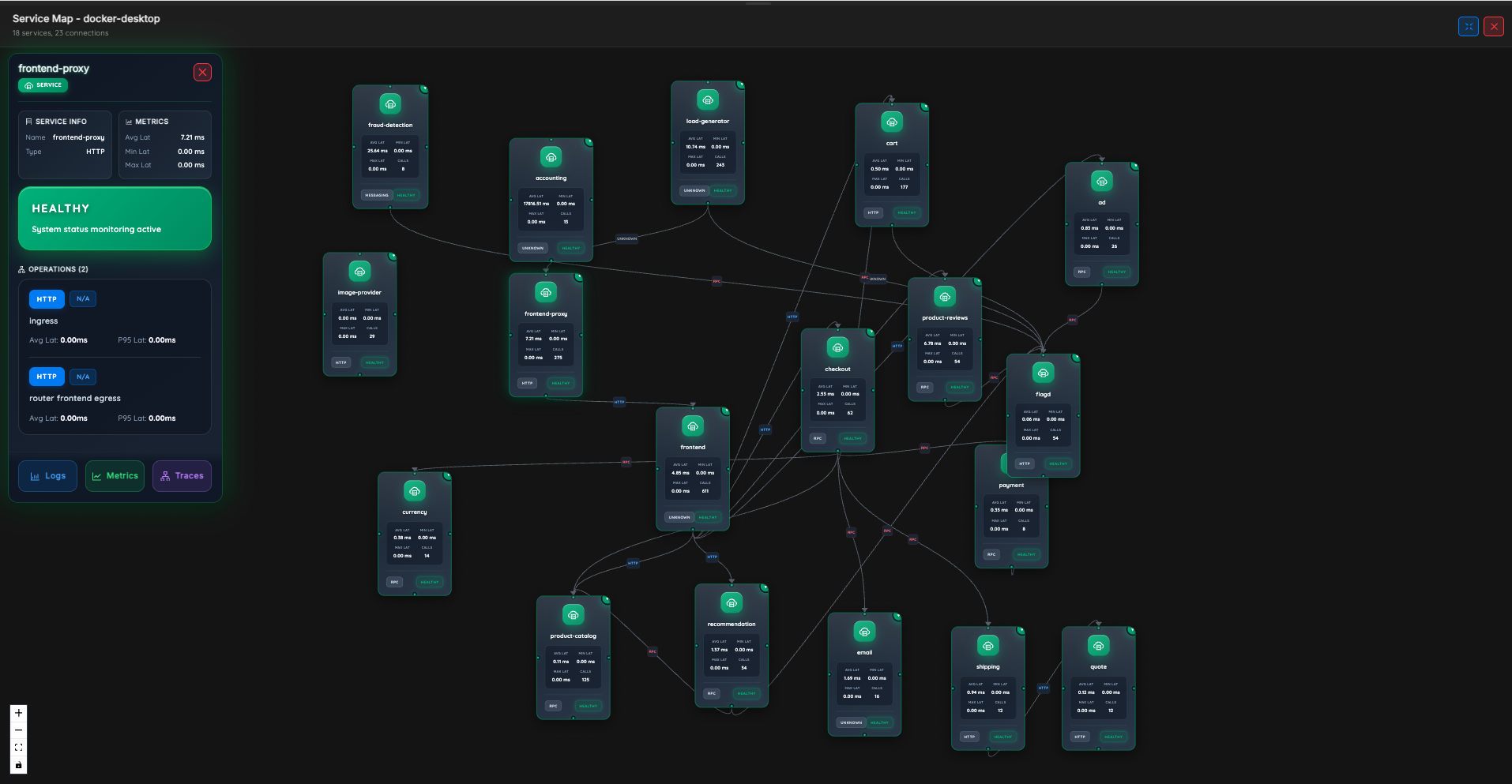

5. Service Map – Detailed View

Service Map – Detailed View
Service Map – Detailed View

Zoom into specific service connections with detailed metrics per node. Each service card shows average/min latency, calls count, operation types (HTTP, RPC, MESSAGING, etc.), and health status.

  • Per-service metrics on every node
  • Operation type badges
  • Connection lines showing request flow
  • Service info panel with full details

Performance Monitoring

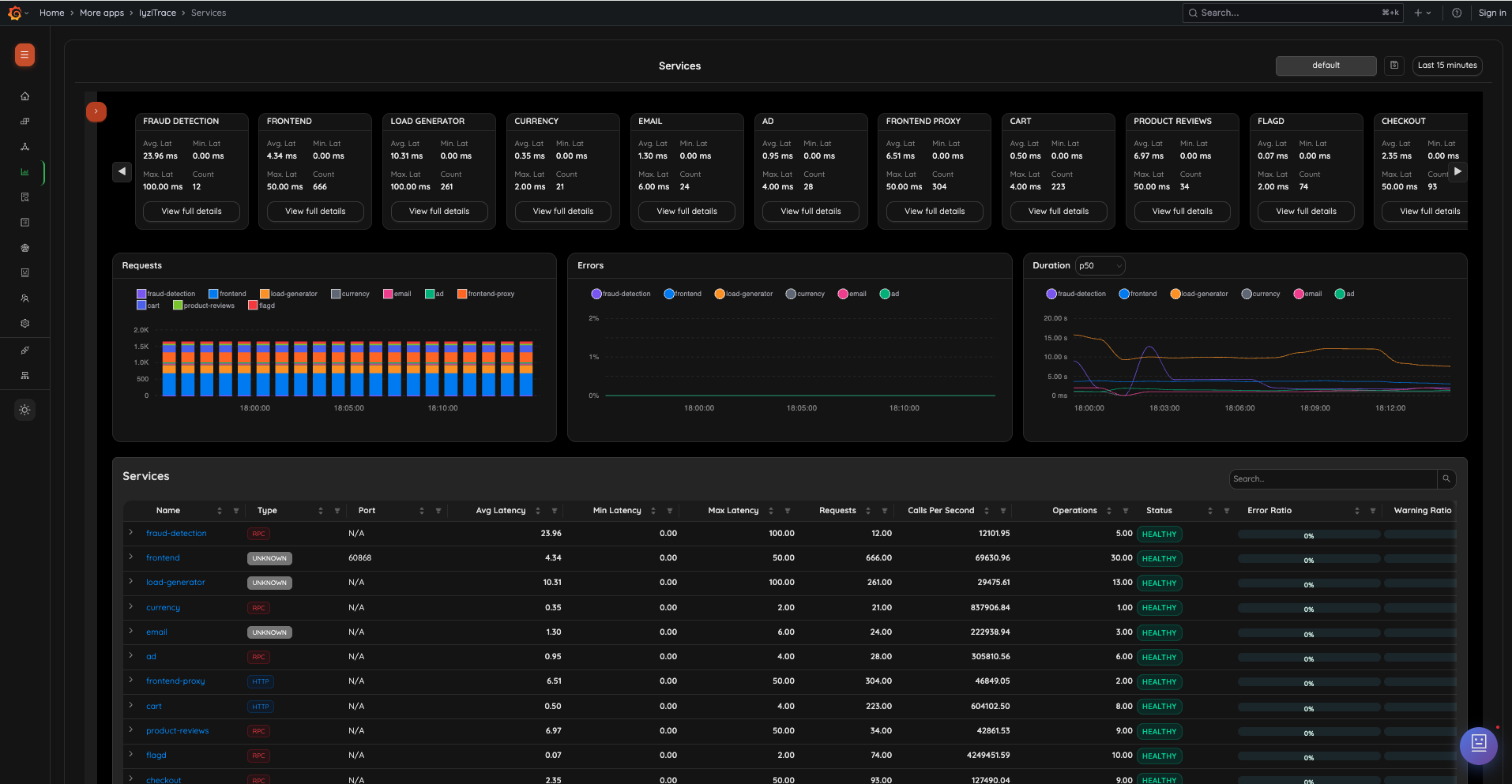

6. Services Overview

Services Overview
Services Overview

Track all services with summary cards showing average, min, and max latency along with call counts. Below, interactive charts display request rates, error rates, and duration percentiles (P50) over time, with a sortable services table.

  • Service summary cards with latency metrics
  • Requests chart (stacked bar chart per service)
  • Errors chart (line chart per service)
  • Duration chart with configurable percentiles
  • Sortable services table with Type, Port, Avg/Min/Max Latency, Requests, Calls/s, Operations, Status, and Error Ratio

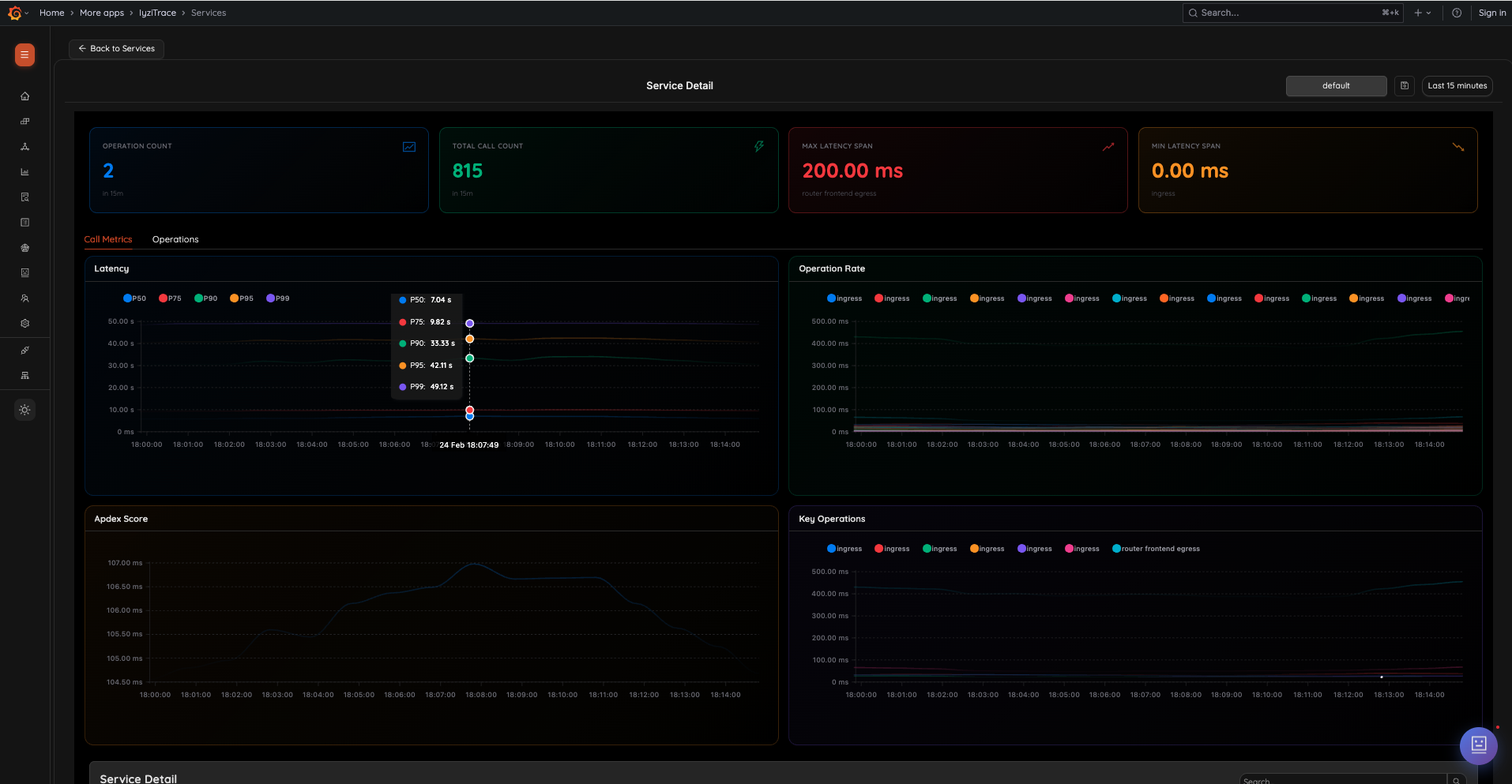

7. Service Detail – Call Metrics

Service Detail – Call Metrics
Service Detail – Call Metrics

Analyze detailed call metrics for any service. View operation count, total call count, max/min latency spans, and interactive charts for latency percentiles (P50, P75, P90, P95, P99), operation rate, Apdex score, and key operations.

  • Summary cards: Operation Count, Total Call Count, Max/Min Latency Span
  • Latency chart with P50–P99 percentiles
  • Operation Rate chart
  • Apdex Score chart
  • Key Operations chart

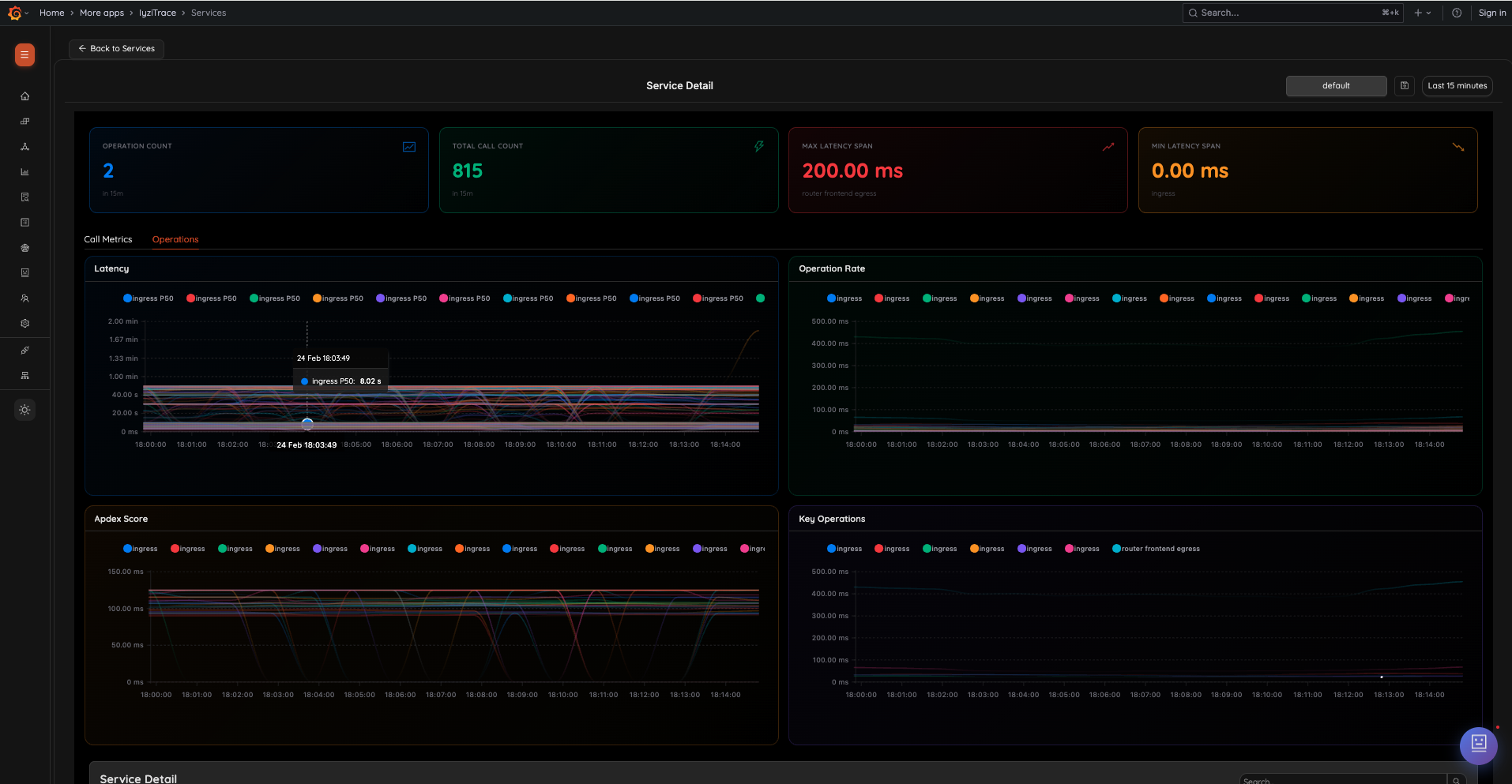

8. Service Detail – Operations Tab

Service Detail – Operations Tab
Service Detail – Operations Tab

Switch to the Operations tab to see per-operation latency breakdown with P50 tooltips, operation rates, and Apdex scores — all with interactive time-series charts.

  • Per-operation P50 latency visualization
  • Operation-level performance breakdown
  • Time-correlated charts for comparison

Distributed Tracing

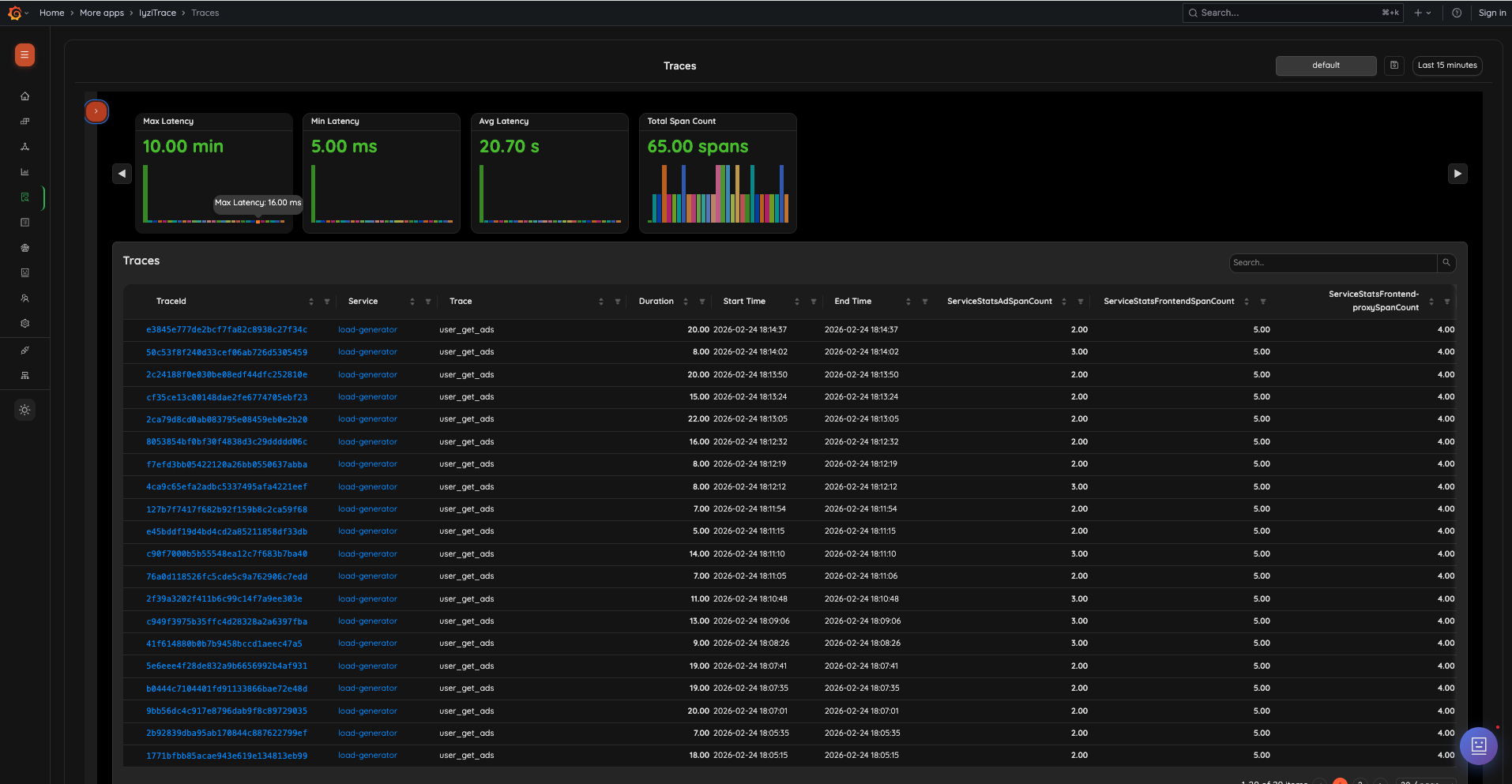

9. Traces Overview

Traces Overview
Traces Overview

View all traces across your system with summary cards showing max latency, min latency, average latency, and total span count. The trace list includes Trace ID, Service, Trace name, Duration, Start/End Time, and per-service span counts.

  • Summary cards with latency statistics and span distribution chart
  • Sortable trace table with service span count columns
  • Clickable Trace IDs for detailed inspection
  • Search and filter capabilities

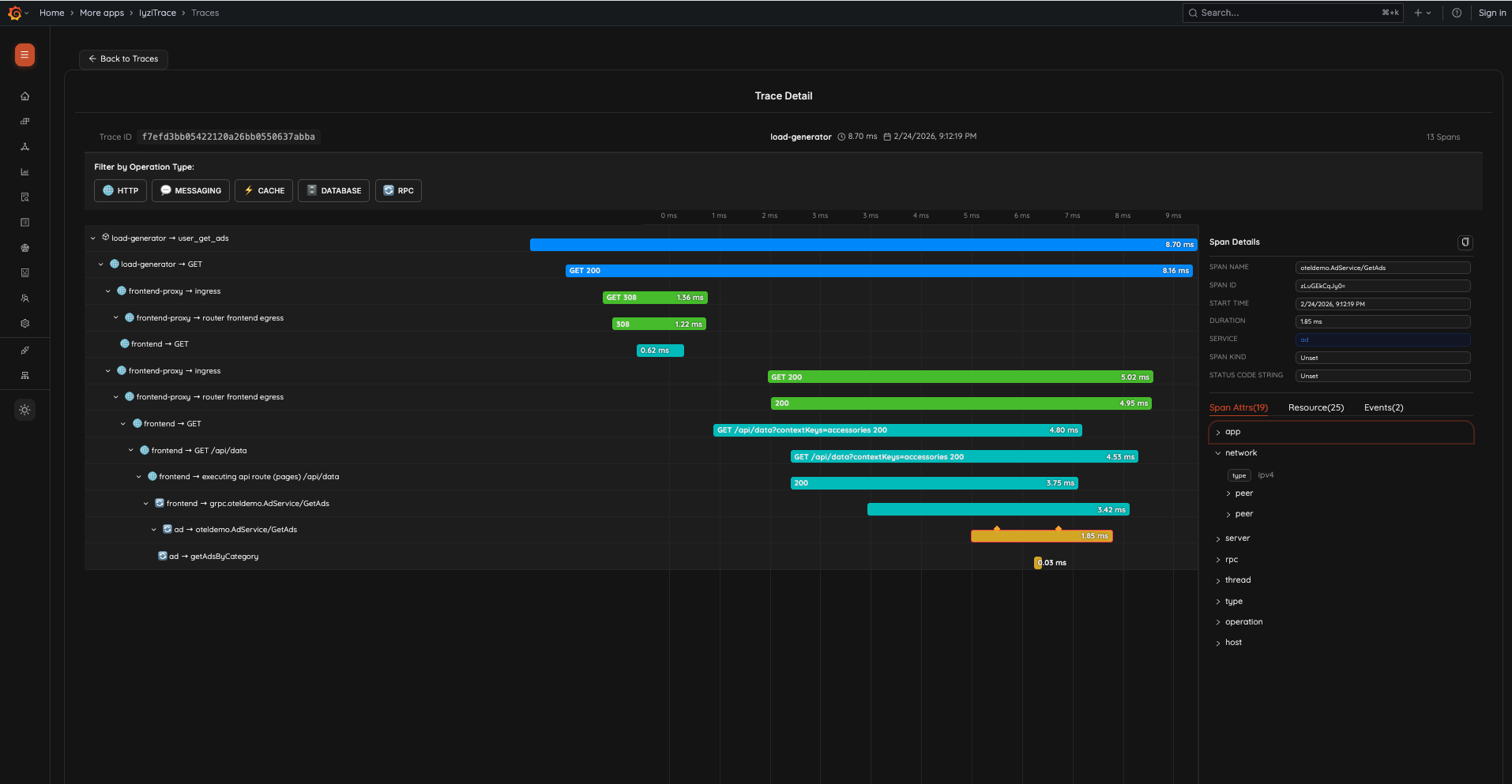

10. Trace Detail

Trace Detail
Trace Detail

Inspect individual traces with a complete Gantt chart timeline view. Filter by operation type (HTTP, MESSAGING, CACHE, DATABASE, RPC), view parent-child span relationships, and inspect span details including attributes, resources, and events.

  • Trace header with root service, duration, timestamp, and span count
  • Operation type filter chips
  • Gantt chart with color-coded spans and status codes
  • Span Details panel: Span Name, Span ID, Start Time, Duration, Service, Span Kind, Status Code
  • Expandable attribute groups: app, network, peer, server, rpc, thread, type, operation, host

Log Management

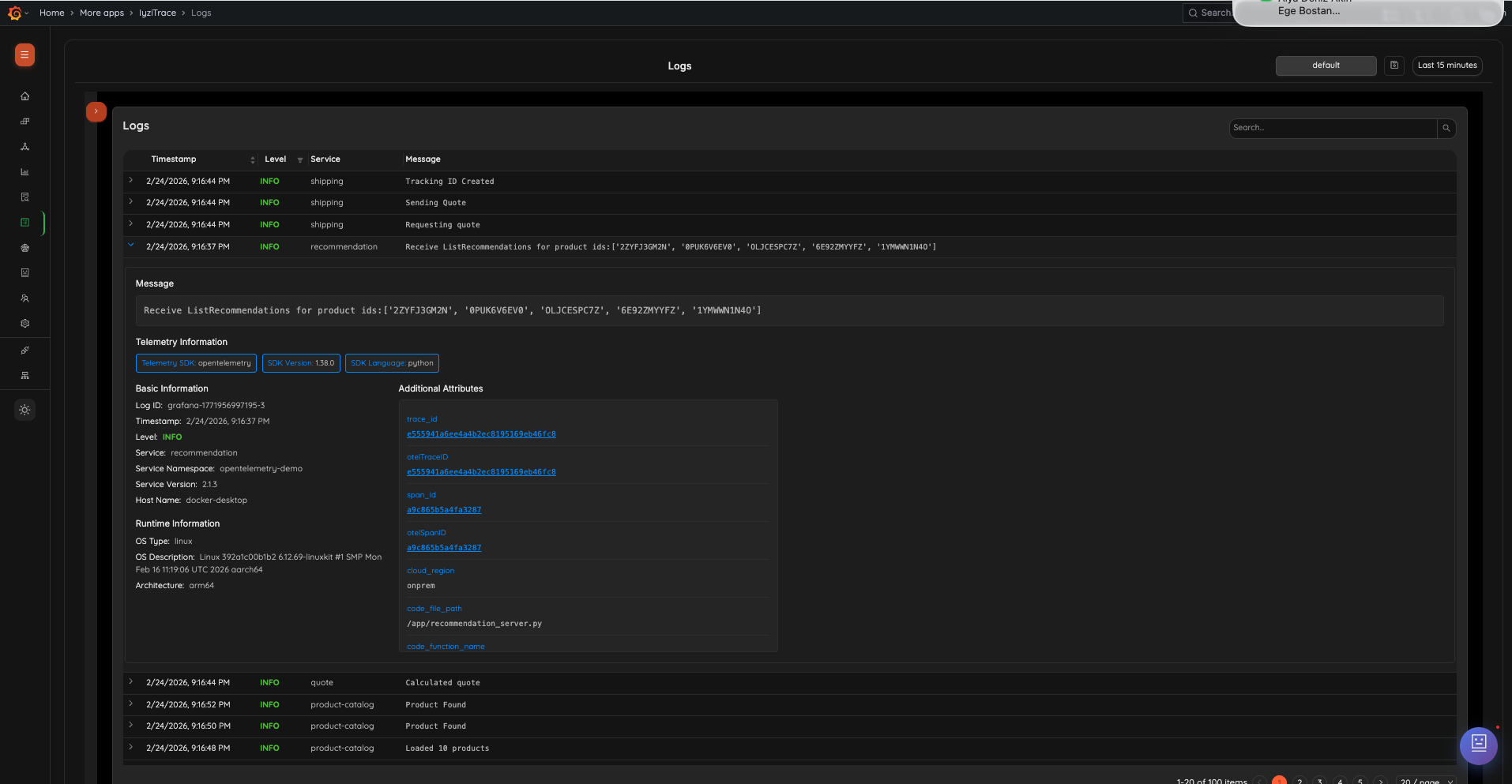

11. Centralized Log Explorer

Centralized Log Explorer
Centralized Log Explorer

Search, filter, and inspect logs from any service. Expand any log entry to see the full message, telemetry information (SDK, version, language), basic information, runtime details, and additional attributes with clickable trace/span IDs.

  • Log list with Timestamp, Level (color-coded), Service, and Message
  • Expandable log detail view with structured sections
  • Telemetry Information badges (SDK, Version, Language)
  • Basic Information: Log ID, Timestamp, Level, Service, Namespace, Version, Host Name
  • Runtime Information: OS Type, OS Description, Architecture
  • Additional Attributes with clickable trace_id, otelTraceID, span_id, otelSpanID links
  • Pagination controls

AI-Powered Analysis

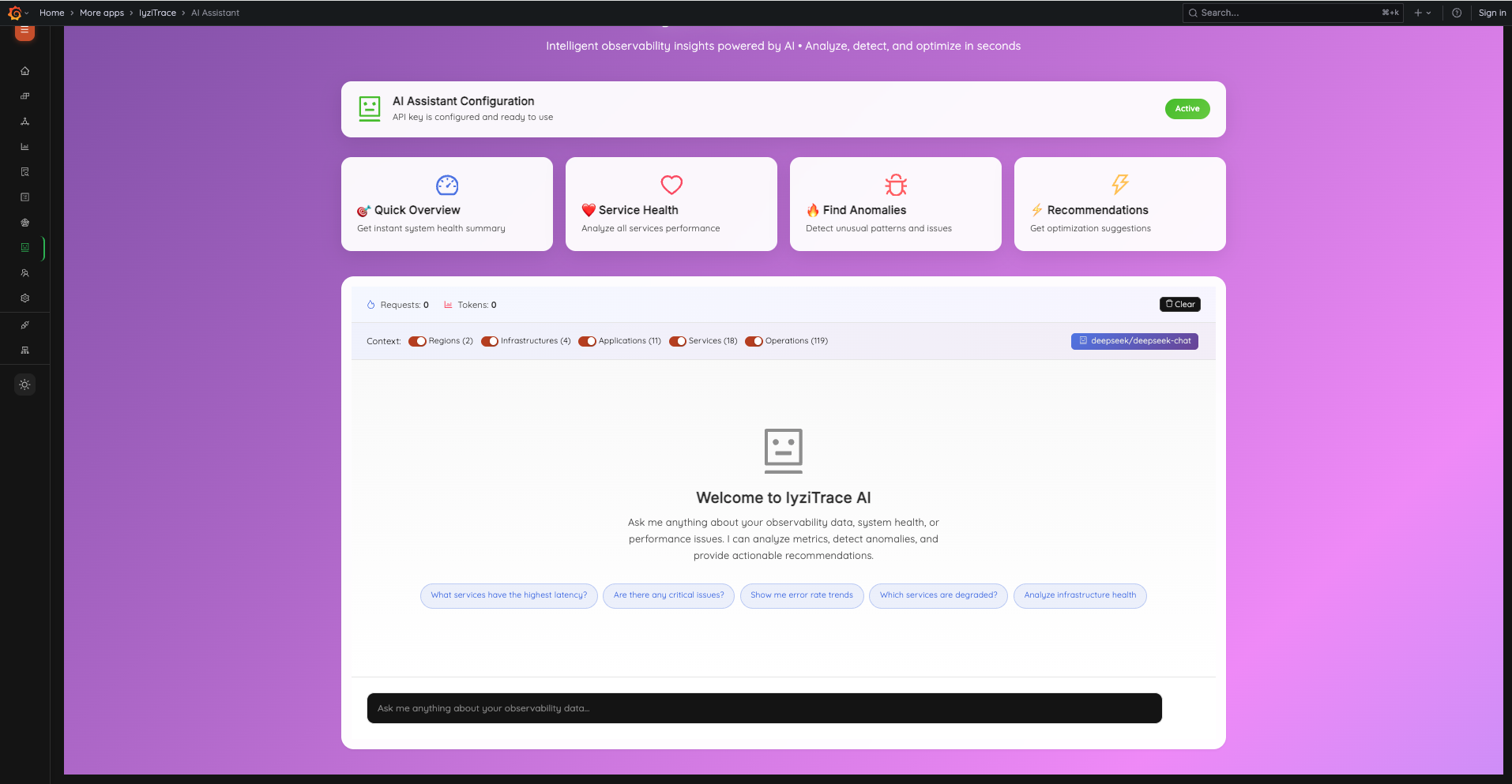

12. AI Assistant – Chat Interface

AI Assistant – Chat Interface
AI Assistant – Chat Interface

The AI Assistant provides a full-page intelligent analysis interface. Quick action cards (Quick Overview, Service Health, Find Anomalies, Recommendations) give instant insights. Context toggles let you include Regions, Infrastructures, Applications, Services, and Operations data.

  • AI Configuration status with Active/Inactive indicator
  • Quick action cards for common analyses
  • Context toggles for data scope selection
  • Model selector (e.g., deepseek/deepseek-chat)
  • Suggested questions for quick start
  • Request and token usage tracking

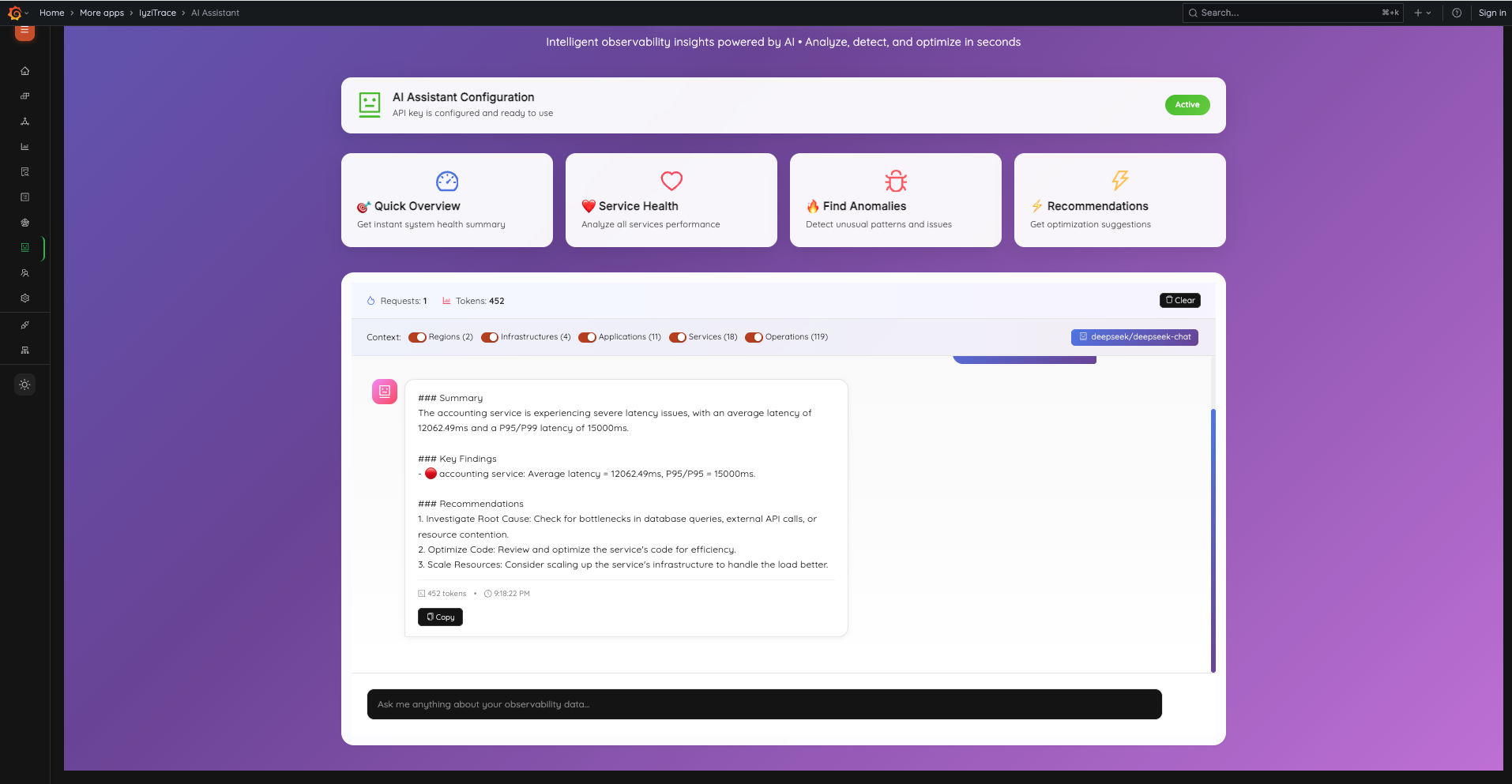

13. AI Assistant – Analysis Response

AI Assistant – Analysis Response
AI Assistant – Analysis Response

AI responses include structured summaries, key findings with severity indicators, and actionable recommendations. Results show token count and timestamp with copy functionality.

  • Structured response format: Summary, Key Findings, Recommendations
  • Severity-coded findings (🔴 critical, 🟡 warning, 🟢 healthy)
  • Copy button for sharing results
  • Token count and timestamp metadata

Agent Management

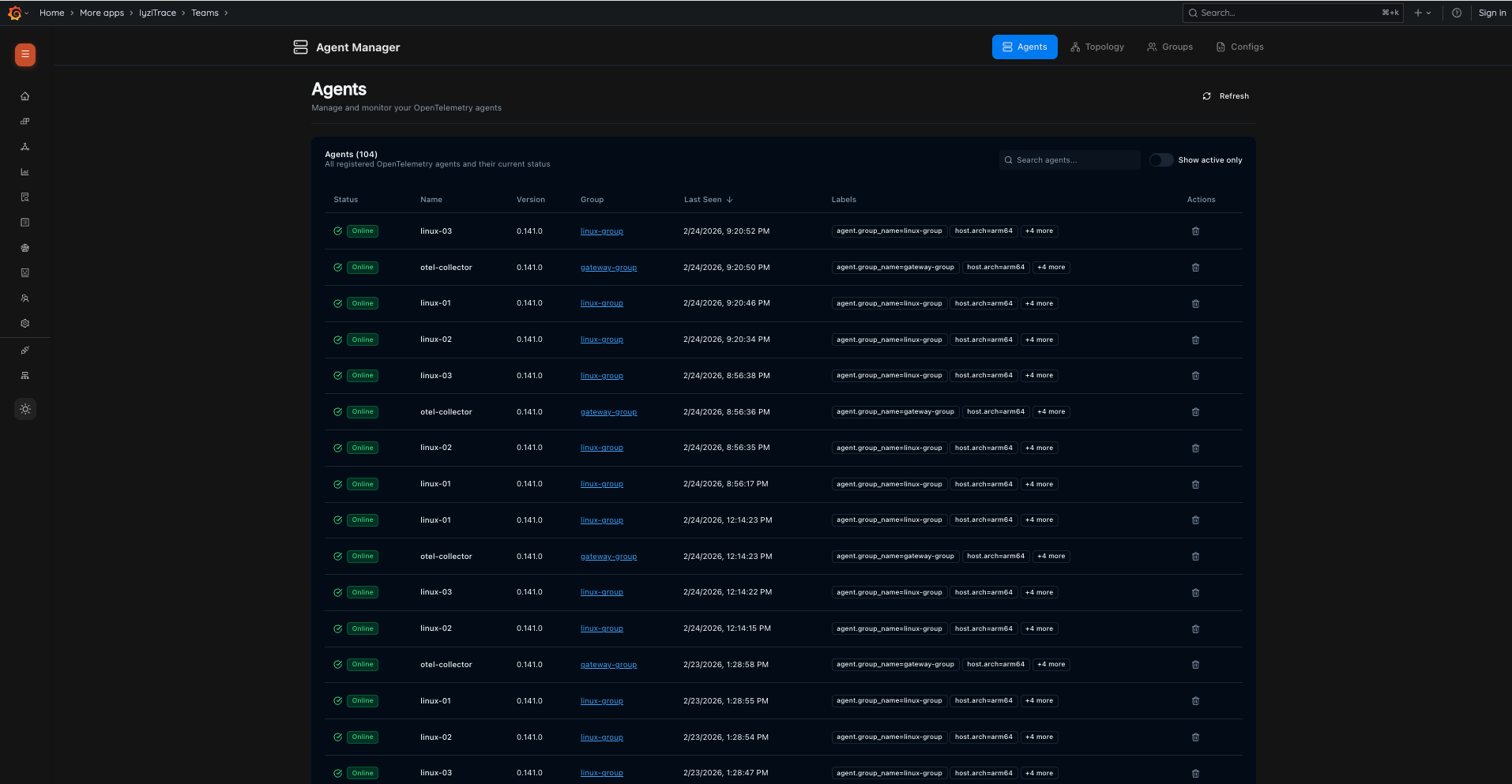

14. Agent Manager – Agents List

Agent Manager – Agents List
Agent Manager – Agents List

Manage and monitor all registered OpenTelemetry agents. View agent status (Online/Offline), name, version, group assignment, last seen timestamp, and labels. Search, filter by active status, and perform actions on agents.

  • Agent list with Status, Name, Version, Group, Last Seen, Labels
  • Search and filter controls
  • "Show active only" toggle
  • Delete action per agent
  • Tabs: Agents, Topology, Groups, Configs

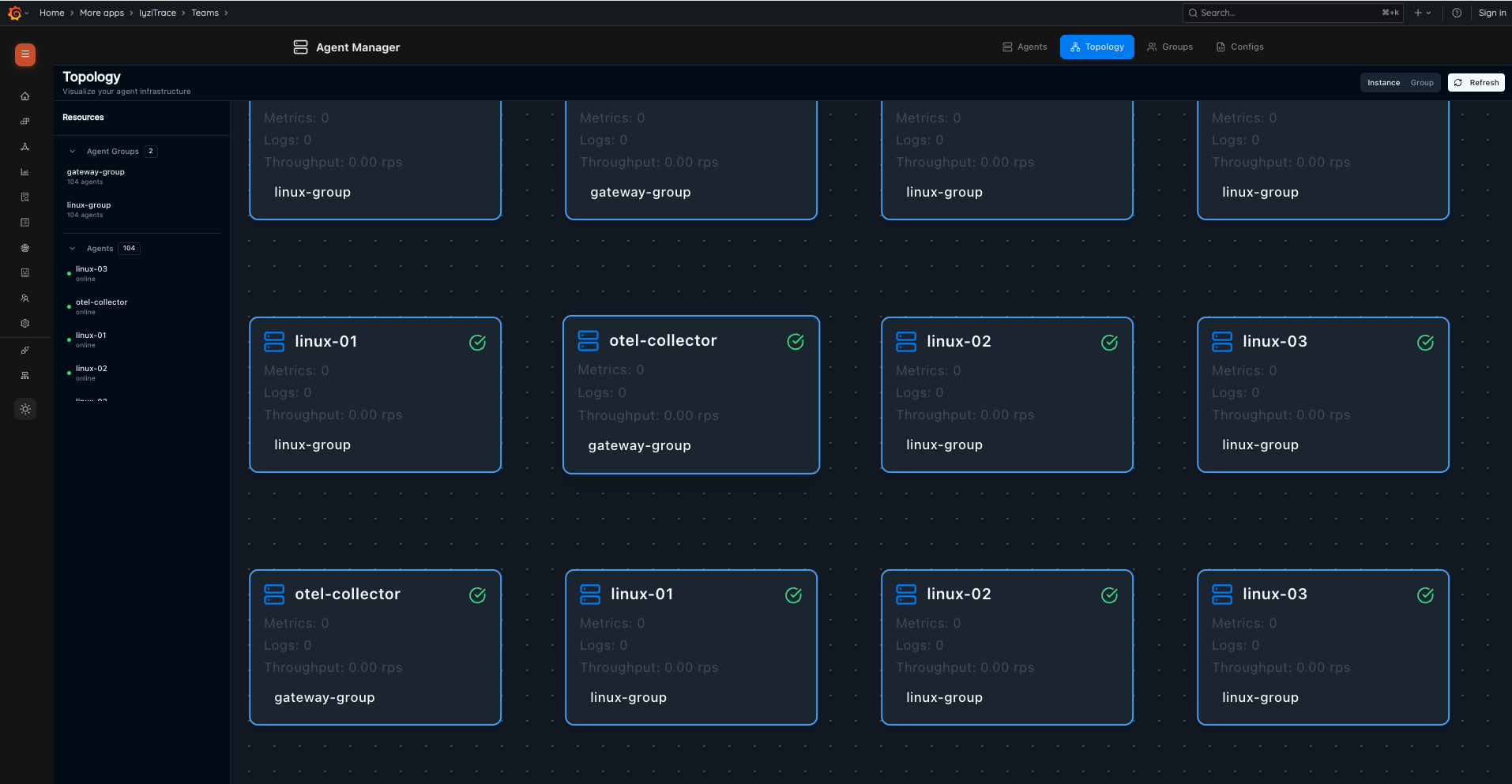

15. Agent Topology

Agent Topology
Agent Topology

Visualize your agent infrastructure as interactive topology cards. View agents grouped by instance or group, with metrics (Metrics count, Logs count, Throughput), and a resource tree showing Agent Groups and individual agents with online/offline status.

  • Instance and Group view modes
  • Agent cards with metrics and group assignment
  • Resource sidebar with Agent Groups tree
  • Individual agent status indicators

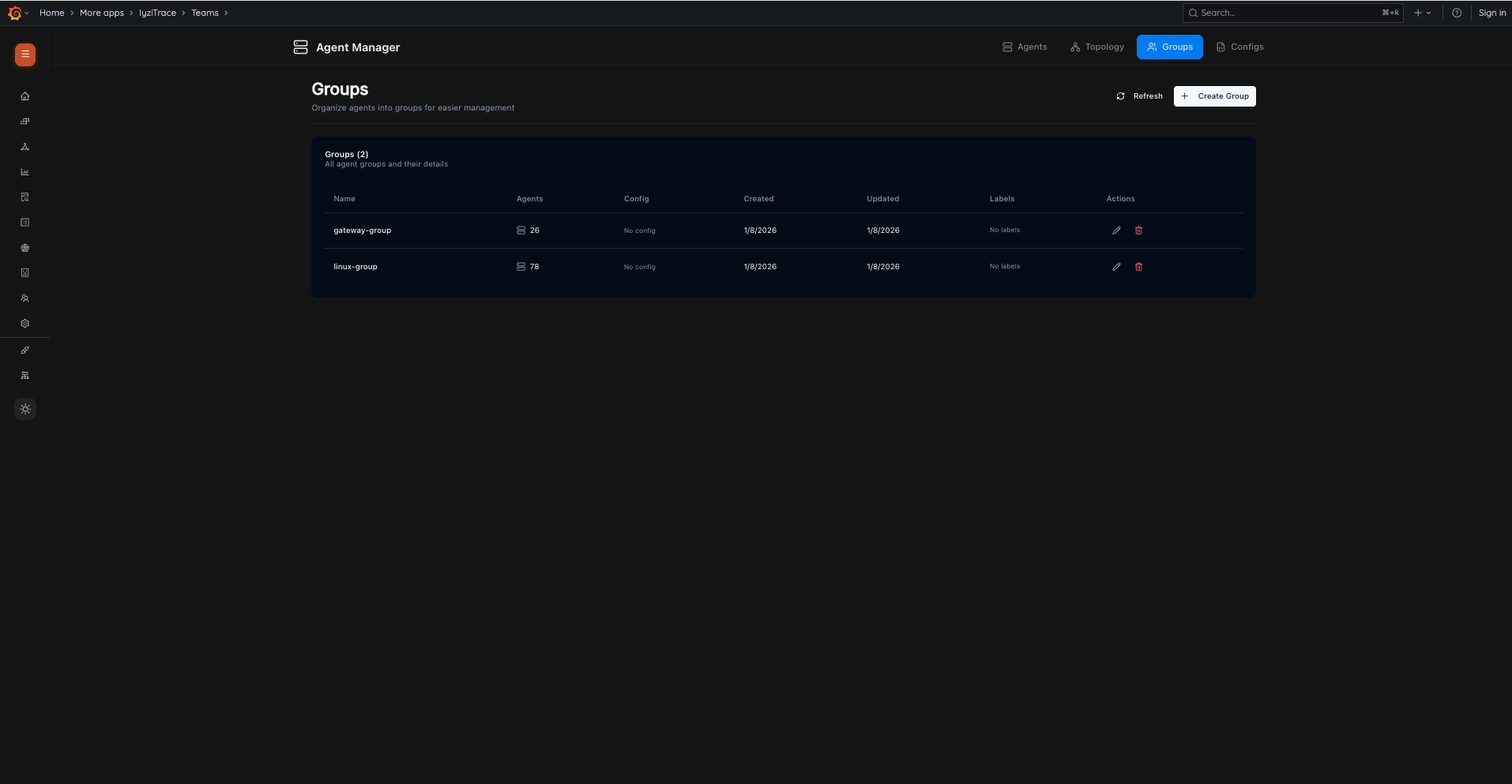

16. Agent Groups

Agent Groups
Agent Groups

Organize agents into logical groups for easier management. View group name, agent count, configuration assignment, creation/update dates, labels, and perform edit/delete actions.

  • Groups table with Name, Agents count, Config, Created, Updated, Labels
  • Create Group button
  • Edit and Delete actions per group

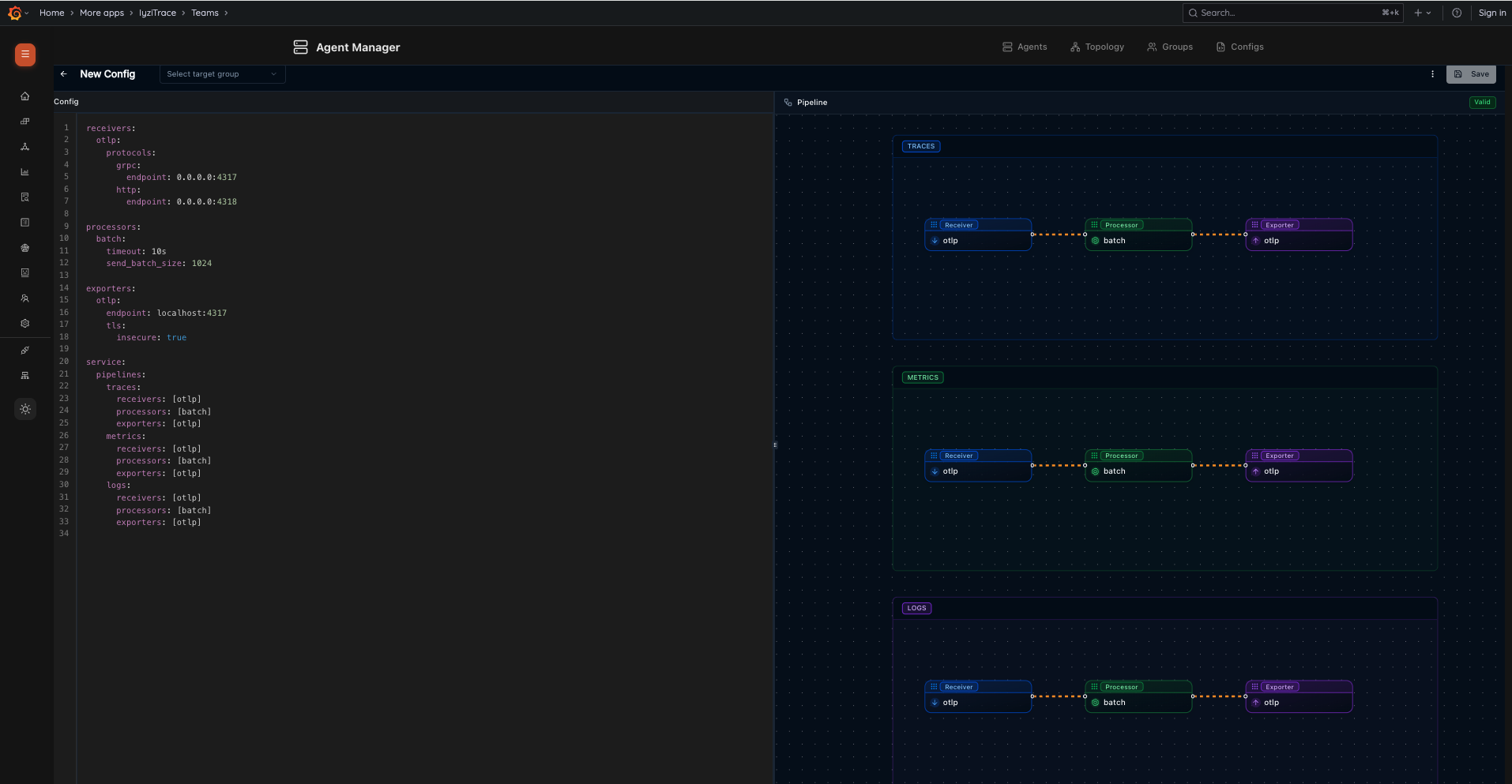

17. Agent Configuration

Agent Configuration
Agent Configuration

Create and edit OpenTelemetry Collector configurations with a built-in YAML editor and live pipeline visualization. The pipeline view shows Receivers, Processors, and Exporters for Traces, Metrics, and Logs with validation status.

  • YAML configuration editor with syntax highlighting
  • Live pipeline visualization (Receiver → Processor → Exporter)
  • Separate pipeline views for Traces, Metrics, and Logs
  • Configuration validation indicator (Valid/Invalid)
  • Target group selector and save functionality

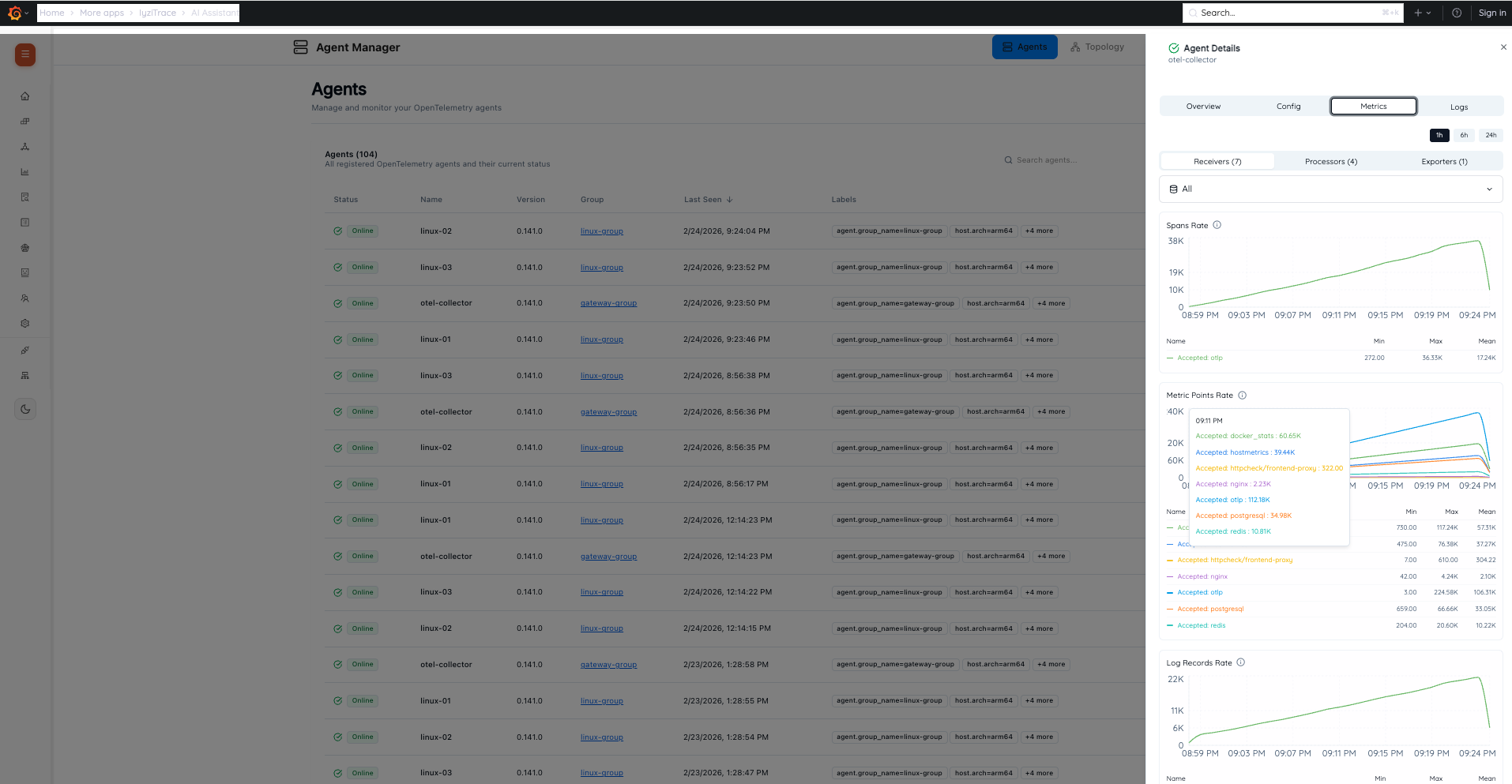

18. Agent Detail – Metrics

Agent Detail – Metrics
Agent Detail – Metrics

Monitor individual agent performance with detailed telemetry metrics. View Spans Rate, Metric Points Rate, and Log Records Rate over time with interactive charts showing accepted data across receivers.

  • Tabs: Overview, Config, Metrics, Logs
  • Time range selection (1h, 6h, 24h)
  • Receivers, Processors, Exporters breakdown
  • Interactive rate charts with Min, Max, Mean statistics

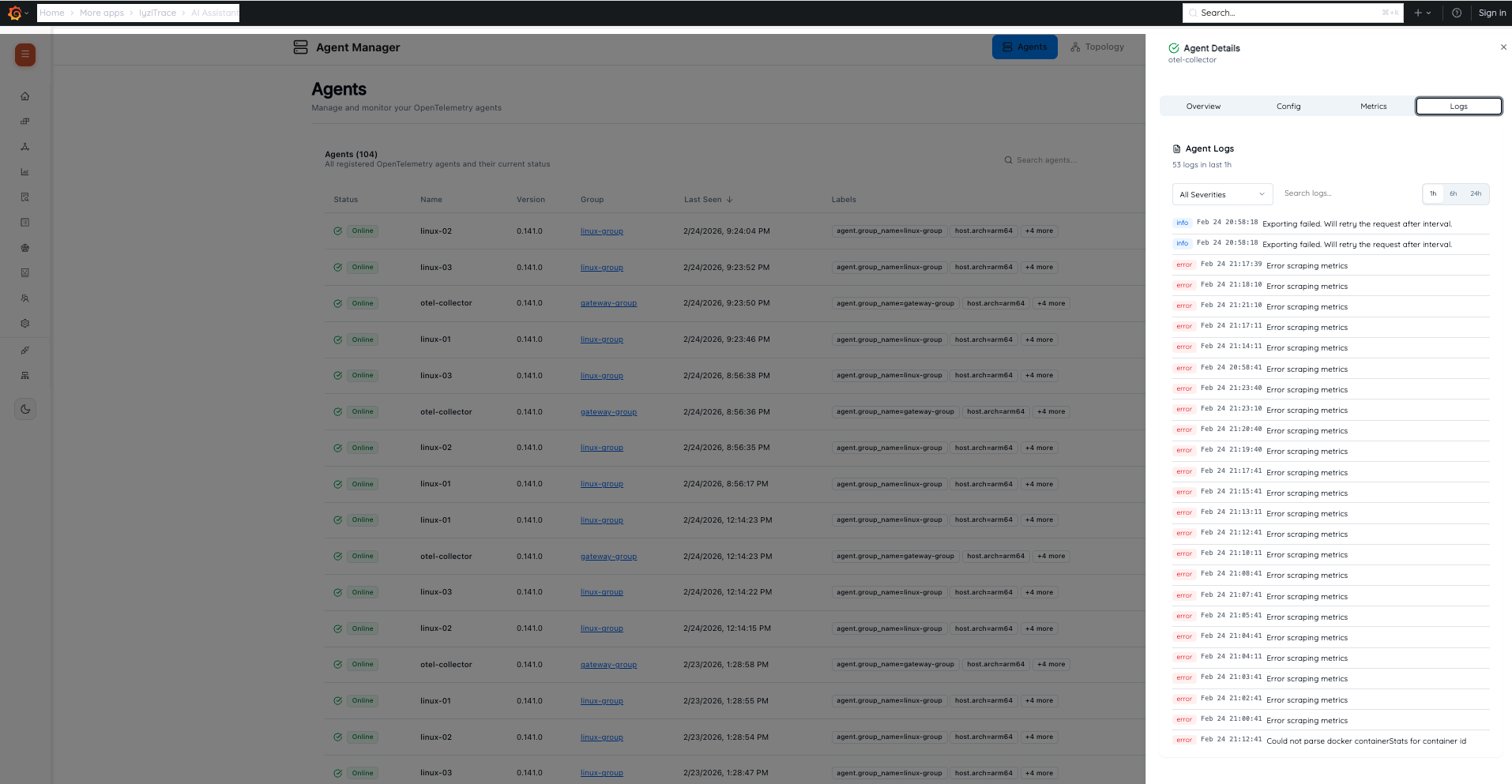

19. Agent Detail – Logs

Agent Detail – Logs
Agent Detail – Logs

View agent-specific logs with severity filtering and search. Logs show timestamp, severity level (Info, Error), and message content for troubleshooting agent issues.

  • Severity filter dropdown
  • Search within logs
  • Time range selection
  • Color-coded log entries by severity

Inventory Management

20. Inventory Dashboard

Inventory Dashboard
Inventory Dashboard

Get a complete overview of all discovered infrastructure entities and their relationships. Summary cards show Total Entities, Total Relations, Entity Types, and Relation Types. Resource breakdown cards display Hosts, Containers, Kubernetes Pods, Services, Databases & Cache, and Messaging Systems.

  • Summary cards: Total Entities (4,202), Total Relations (4,379), Entity Types (10), Relation Types (8)
  • Resource breakdown: Hosts, Containers, Kubernetes Pods, Services, Databases & Cache, Messaging Systems
  • All Entity Types with counts (process, container, service, host, cloud.region, etc.)
  • Recent Entities list with type badges and timestamps
  • Tabs: Dashboard, Tree View, Table View

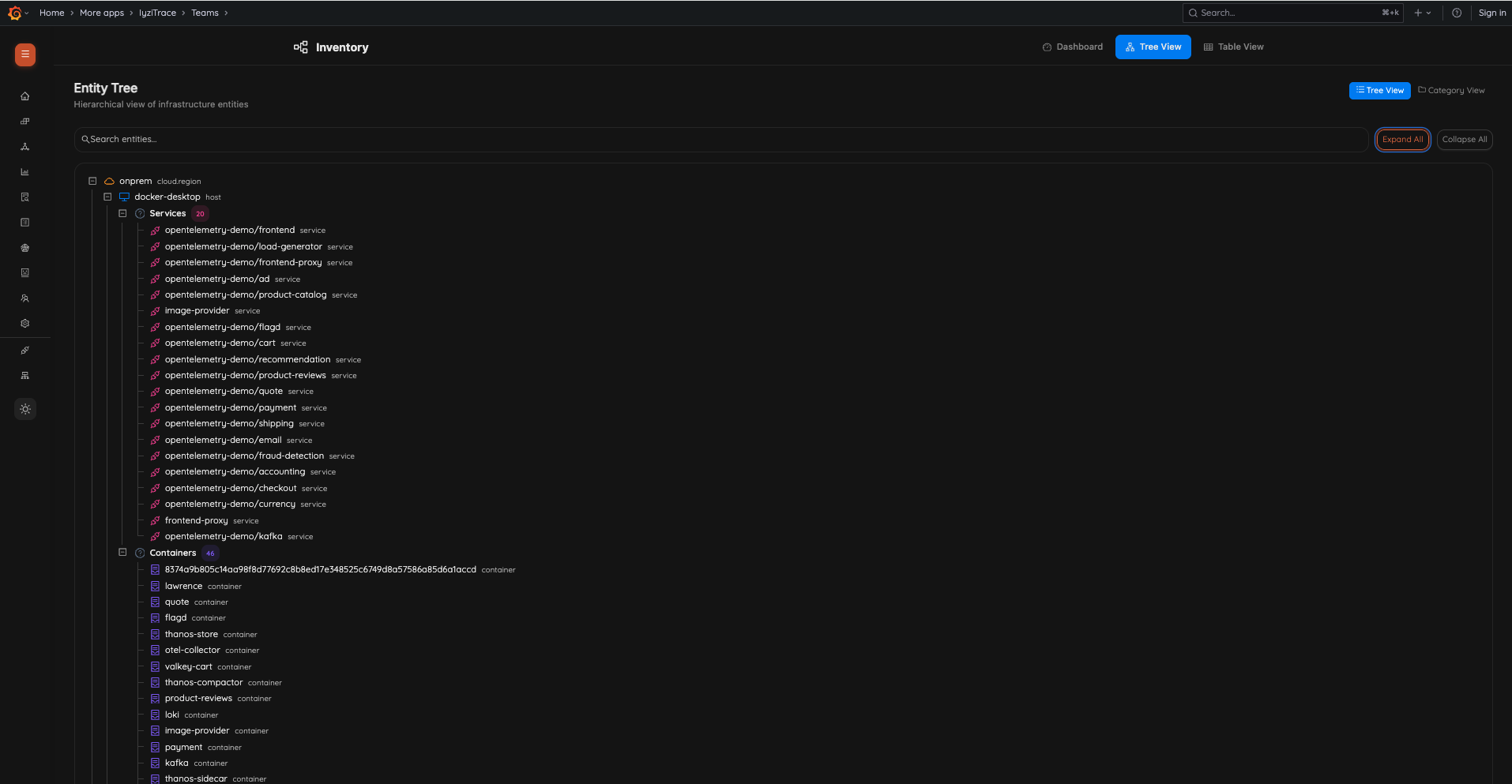

21. Inventory Tree View

Inventory Tree View
Inventory Tree View

Explore your infrastructure hierarchy in an interactive tree structure. Navigate from cloud regions → hosts → services → containers with expandable nodes. Switch between Tree View and Category View.

  • Hierarchical entity tree: cloud.region → host → services → containers
  • Expand/Collapse all functionality
  • Search across entities
  • Tree View and Category View toggle
  • Entity type badges with color coding

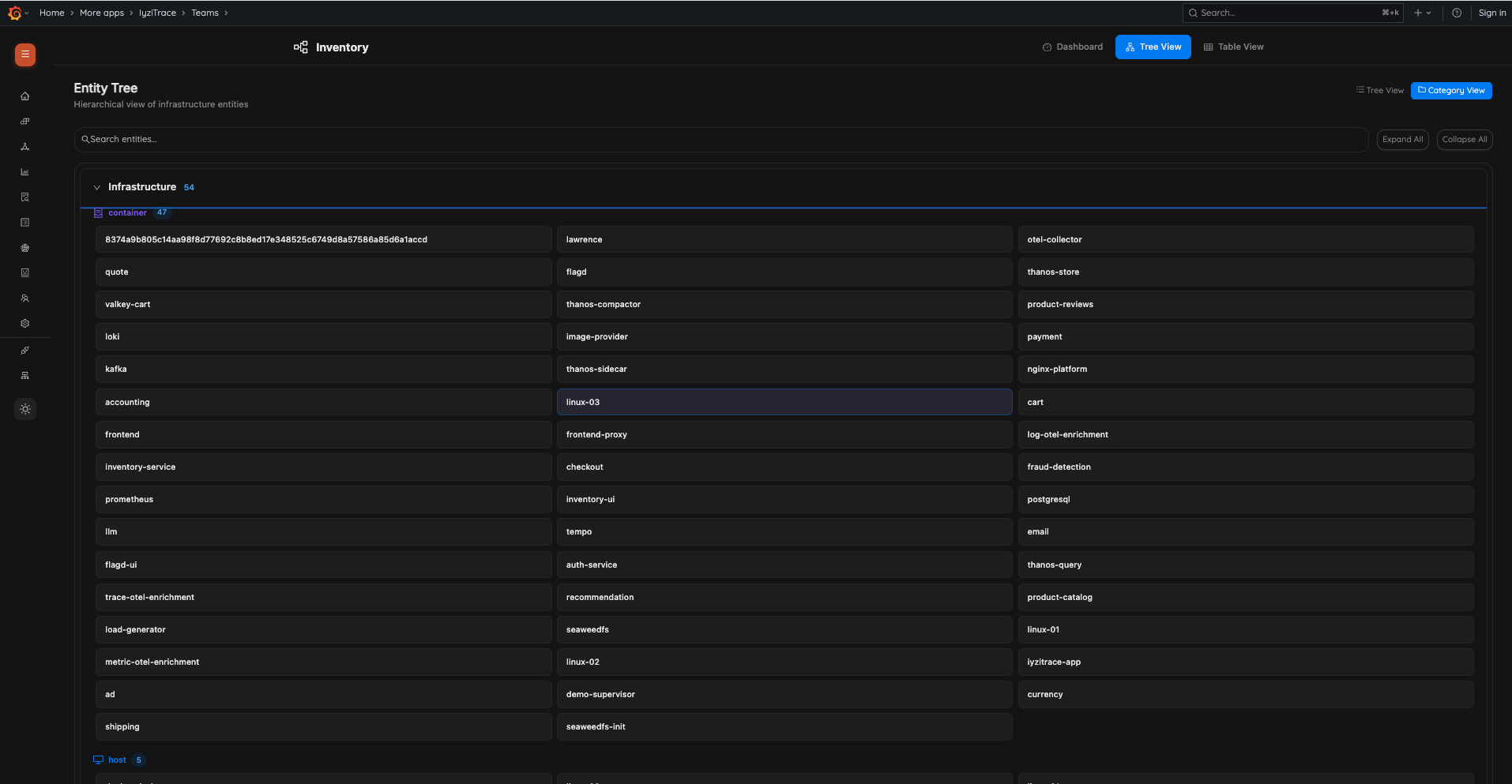

22. Inventory Company View

Inventory Company View
Inventory Company View

23. Inventory Service Detail

Inventory Service Detail
Inventory Service Detail

24. Inventory Table – Entities

Inventory Table – Entities
Inventory Table – Entities

25. Inventory Table – Relations

Inventory Table – Relations
Inventory Table – Relations

Customization

26. Exception Tracking

Exception Tracking
Exception Tracking

Track and analyze exceptions across services. View ExceptionType, Count, Service, Operation, Type (messaging, rpc, etc.), and ExceptionMessage with search and pagination.

27. Exception Detail

Exception Detail
Exception Detail

Inspect individual exceptions with full context. Quick action cards link to Service Details, Trace Graph, and Span Details. Key-Value Pairs table shows all span attributes including serviceName, host.name, traceID, spanID, messaging details, resource information, and more.

  • Navigation: Previous/Next Exception
  • Quick actions: View Service Details, See the error in trace graph, View Span Details
  • Complete key-value pairs with clickable trace/span links

#Get Started

Installation

Step 1: Install from Grafana Marketplace

  1. Log in to your Grafana instance
  2. Navigate to Configuration → Plugins
  3. Search for "IyziTrace"
  4. Click Install

Plugin Installation
Plugin Installation

Alternatively, install via CLI:

language-bash bash
grafana-cli plugins install iyzitrace-app

Step 2: Enable the Plugin

  1. Go to Configuration → Plugins
  2. Find IyziTrace in your installed plugins
  3. Click Enable

Plugin Configuration
Plugin Configuration

Setup Wizard

Wizard Demo
Wizard Demo

IyziTrace includes a guided setup wizard to get you started quickly:

Step 1: Platform Connection

Wizard – Platform Connection
Wizard – Platform Connection

Connect to your IyziTrace Observability Platform:

  1. Enter your Platform URL (e.g., http://localhost)
  2. Choose Authentication Type: Open Access or API Key Protected
  3. If API Key Protected, enter your Platform API Key
  4. Click Verify Connection to test connectivity
  5. Click Continue to proceed

Step 2: Configure Data Sources

Wizard – Data Sources
Wizard – Data Sources

Automatically configure Prometheus, Loki, and Tempo data sources:

  1. Review the auto-detected data source endpoints
  2. Click Configure Data Sources to set them up in Grafana
  3. Verify all data sources show green checkmarks
  4. Click Continue to proceed

Step 3: Verification

Wizard – Verification
Wizard – Verification

The wizard verifies your setup:

  1. Check that all data sources are properly connected
  2. Verify data is flowing through the platform
  3. Click Finish to complete the setup

Initial Configuration

After completing the setup wizard, you can fine-tune your configuration in Settings:

Settings – Platform
Settings – Platform

Settings Tabs:

  1. Platform: Configure platform URL and authentication
  2. Data Sources: Manage Prometheus, Loki, and Tempo connections
  3. AI: Configure AI assistant with OpenRouter API key and model selection
  4. Definitions: Define metric and label patterns
  5. Privacy: Privacy and data handling settings

Settings – Data Sources
Settings – Data Sources

Quick Start Guide

Once configured, you'll see the Home Page with module status and views:

Home Page
Home Page

Module Status shows active modules (e.g., 10/11 active), and Section Cards provide quick navigation:

  • Overview – Infrastructure & service topology
  • Service Map – Visual dependency graph
  • Services – Performance monitoring
  • Traces – Distributed trace analysis
  • Logs – Centralized log management
  • Exceptions – Exception tracking
  • AI Assistant – AI-powered insights
  • Teams – User & team management
  • Agents – OpenTelemetry agent management
  • Inventories – Infrastructure inventory

Each card shows Explore and Active/Inactive status. Below, the Views section shows saved monitoring views with live metrics.

#Key Concepts

Resources

In IyziTrace, everything revolves around resources. A resource represents a component in your system:

  • Infrastructure: Physical or virtual hosts (e.g., servers, containers)
  • Services: Applications or microservices running on infrastructure
  • Operations: Individual functions or API endpoints within services

Resources follow OpenTelemetry semantic conventions and include attributes like:

  • cloud.region
  • host.name
  • host.ip
  • os.type
  • service.name
  • service.version

Service Infrastructure Mapping

IyziTrace automatically discovers relationships between services and infrastructure:

  1. Auto-Discovery: Based on host_name and cloud_region labels
  2. Manual Mapping: Drag-and-drop orphan services to infrastructure
  3. Persistent Mapping: Mappings are saved and persist across sessions

Time Picker

Time Range Filter
Time Range Filter

All views support flexible time range selection:

  • Quick Ranges: Last 5 minutes, 15 minutes, 30 minutes, 1 hour, 3 hours, 6 hours, 12 hours, 24 hours, 2 days
  • Custom Range: Select specific start and end times with absolute date-time picker
  • Relative Ranges: "now-1h" to "now"

Time ranges are preserved when navigating between views.

Filtering

Filters Panel
Filters Panel

IyziTrace provides powerful filtering capabilities:

  • Service: Filter by service name
  • Type: Filter by service type
  • Operation: Filter by operation name
  • Status: Filter by health status
  • Exception Type: Filter by exception type
  • Labels: Add custom label filters
  • Fields: Add custom field filters
  • Options: Limit, Interval, Page Count, Order By, Direction
  • Apply / Reset: Apply filters or reset to defaults

#Features

Landing Page

Landing Page Demo
Landing Page Demo

The Home Page provides an at-a-glance overview of your observability setup.

Home Page
Home Page

Key Features:

  • Module Status: Shows active module count (e.g., 10/11 active)
  • Section Status Cards: Quick view of all modules with Active/Inactive status
    • Overview, Service Map, Services, Traces, Logs, Exceptions, AI Assistant, Teams, Agents, Inventories
  • Quick Navigation: Click "Explore" on any card to jump to that section
  • Views Section: Saved monitoring views with live metric panels
    • Overview Dashboard, Top Services, Trace Metrics, Log Statistics, Exception Summary, Topology Snapshot
    • Each view shows live metrics refreshed in real-time

Overview

Overview Demo
Overview Demo

The Overview page provides a comprehensive view of your entire infrastructure and service topology.

Overview – Full View
Overview – Full View

Layout:

The page is organized into horizontal scrollable sections:

  1. Regions: Cloud regions with health indicators (Healthy, Error)
  2. Infrastructures: Host cards with OS type, CPU usage, memory usage, and Applications button
  3. Services: Services grouped by infrastructure with type badges, avg duration, and calls/sec
  4. Operations: Operations grouped by service with expandable details

Overview – Table View
Overview – Table View

Data Table Features:

  • Expandable rows: Infrastructure → Services → Operations
  • Columns: Name, OS Version, IP Address, Type, Status, Error Ratio, Warning Ratio, Degraded Ratio
  • Service sub-table: Name, Type, Port, Sum, Avg, Min, Max, P50–P99, Calls, Calls/s, Ops, Status

Service Map

Service Map Demo
Service Map Demo

The Service Map provides a visual representation of service dependencies and data flow.

Service Map – Infrastructure View
Service Map – Infrastructure View

Two Views Available:

1. Infrastructure Topology Map

Shows infrastructure nodes grouped by region with health status:

  • Region-based grouping (e.g., Linux-farm, Onprem)
  • Infrastructure cards with health badges (HEALTHY, ERROR)
  • Click any node to open detail drawer with:
    • Infrastructure info (IP Address, OS Version, Type)
    • Resources (CPU, Memory, Usage)
    • Health status with monitoring status
    • Applications list
    • "View Services Map" link

2. Service Dependency Map

Service Map – Dependencies
Service Map – Dependencies

Detailed service dependency graph showing all connections:

  • Service nodes with metrics (Avg Lat, Min Lat, Max Lat, Calls)
  • Connection lines showing request flow
  • Service detail drawer with:
    • Service Info (Name, Type)
    • Metrics (Avg Lat, Min Lat, Max Lat)
    • Health status
    • Operations list with type badges and latency
    • Quick links: Logs, Metrics, Traces

Service Map – Zoomed Detail
Service Map – Zoomed Detail

Services

Services Demo
Services Demo

The Services page provides comprehensive performance monitoring.

Services Page
Services Page

Service Summary Cards:

  • Each service shows: Avg. Lat, Min. Lat, Max. Lat, Count
  • "View full details" link for each service

Performance Charts:

  • Requests: Stacked bar chart showing request volume per service
  • Errors: Line chart showing error rates per service
  • Duration: Line chart with configurable percentiles (P50, P90, P95, P99)

Services Table:

  • Columns: Name, Type, Port, Avg Latency, Min Latency, Max Latency, Requests, Calls Per Second, Operations, Status, Error Ratio, Warning Ratio
  • Expandable rows to see operations within each service
  • Search and sort capabilities

Service Detail:

Service Detail – Call Metrics
Service Detail – Call Metrics

Click any service to see detailed analytics:

  • Summary cards: Operation Count, Total Call Count, Max/Min Latency Span
  • Call Metrics tab: Latency (P50–P99), Operation Rate, Apdex Score, Key Operations
  • Operations tab: Per-operation latency breakdown

Service Detail – Operations
Service Detail – Operations

Traces

Traces Demo
Traces Demo

The Traces page helps you analyze distributed traces across your microservices.

Traces Page
Traces Page

Summary Cards:

  • Max Latency, Min Latency, Avg Latency, Total Span Count
  • Mini chart showing span distribution

Trace List:

  • Columns: TraceId, Service, Trace, Duration, Start Time, End Time, per-service span counts
  • Clickable Trace IDs for detailed view
  • Search bar for filtering

Trace Detail:

Trace Detail
Trace Detail

Click any trace to see:

  • Trace header: Trace ID, root service, duration, timestamp, total spans
  • Operation Type Filters: HTTP, MESSAGING, CACHE, DATABASE, RPC
  • Gantt Chart Timeline: Visual span timeline with:
    • Color-coded spans by status (200, 308, etc.)
    • Parent-child relationship indentation
    • Duration labels on each span
  • Span Details Panel:
    • Span Name, Span ID, Start Time, Duration
    • Service, Span Kind, Status Code String
    • Tabs: Span Attrs, Resource, Events
    • Expandable attribute groups: app, network, peer, server, rpc, thread, type, operation, host

Logs

Logs Demo
Logs Demo

The Logs page provides powerful log aggregation and search capabilities.

Logs Page
Logs Page

Log Stream:

  • Columns: Timestamp, Level (color-coded), Service, Message
  • Expandable log entries with detailed view
  • Pagination with configurable page size

Expanded Log Entry:

  • Message: Full log message content
  • Telemetry Information: SDK badges (Telemetry SDK, SDK Version, SDK Language)
  • Basic Information: Log ID, Timestamp, Level, Service, Service Namespace, Service Version, Host Name
  • Runtime Information: OS Type, OS Description, Architecture
  • Additional Attributes: Complete key-value pairs with clickable links for trace_id, otelTraceID, span_id, otelSpanID, cloud_region, code_file_path, code_function_name

Views

The Views section (on the Home page) allows you to save and manage custom monitoring views.

Views on Home Page
Views on Home Page

Creating a View:

  1. Navigate to any page (e.g., Overview, Services, Traces)
  2. Apply your desired filters
  3. Click Save View button
  4. Enter a name and description
  5. Click Save

View Cards: Each saved view shows:

  • View name and page type
  • Created date
  • Live metric panels with real-time data
  • View, Edit, Delete actions

Available View Types:

  • Overview Dashboard: Regions, Infrastructures, Healthy Services, Traces
  • Top Services: Service-specific latency metrics
  • Trace Metrics: Total Traces, Avg Latency, Max Latency, Total Spans
  • Log Statistics: Total Logs, log level breakdown
  • Exception Summary: Total Count, exception type breakdown
  • Topology Snapshot: Regions, Infrastructures, Applications, Services

Exceptions

Exceptions Demo
Exceptions Demo

The Exceptions page helps you track and analyze errors across services.

Exceptions Page
Exceptions Page

Exception List:

  • Columns: ExceptionType, Count, Service, Operation, Type, ExceptionMessage
  • Color-coded type badges (messaging, rpc, etc.)
  • Clickable exception types for detail view
  • Search and pagination

Exception Detail:

Exception Detail
Exception Detail

Click any exception to see:

  • Exception type and message header
  • Event ID and timestamp
  • Quick Actions:
    • View Service Details
    • See the error in trace graph
    • View Span Details
  • Key-Value Pairs: Complete span attributes including:
    • serviceName, host.name, traceID, spanID
    • Messaging details (client, consumer group, operation, system, destination)
    • Resource details (container.id, host.arch, os.type, os.description)
  • Previous/Next Exception navigation

AI Assistant

AI Assistant Demo
AI Assistant Demo

The AI Assistant provides intelligent insights and recommendations powered by AI.

AI Assistant
AI Assistant

Features:

1. Full-Page Analysis Interface

  • Configuration Status: API key status (Active/Inactive)
  • Quick Action Cards: Quick Overview, Service Health, Find Anomalies, Recommendations
  • Context Toggles: Enable/disable Regions, Infrastructures, Applications, Services, Operations
  • Model Selection: Choose AI model (e.g., deepseek/deepseek-chat)
  • Usage Tracking: Request count and token usage

2. Suggested Questions

Pre-built questions for quick start:

  • "What services have the highest latency?"
  • "Are there any critical issues?"
  • "Show me error rate trends"
  • "Which services are degraded?"
  • "Analyze infrastructure health"

3. AI Analysis Response

AI Response
AI Response

Structured responses with:

  • Summary: Overview of findings
  • Key Findings: Severity-coded items (🔴 critical, 🟡 warning, 🟢 healthy)
  • Recommendations: Numbered action items
  • Token count and timestamp
  • Copy button for sharing

Agent Manager

Agent Manager Demo
Agent Manager Demo

The Agent Manager provides comprehensive management of OpenTelemetry collectors.

Agent Manager – Agents
Agent Manager – Agents

Agents Tab:

  • All registered agents with Status, Name, Version, Group, Last Seen, Labels
  • Search agents and filter by active status
  • Delete action per agent
  • Click any agent to open the detail drawer

Agent Detail Drawer:

The drawer provides four tabs:

  1. Overview: Agent basic information and status

  2. Config: Current configuration details

    Agent Detail – Config
    Agent Detail – Config

  3. Metrics: Telemetry performance metrics

    Agent Detail – Metrics
    Agent Detail – Metrics

    • Spans Rate, Metric Points Rate, Log Records Rate
    • Receivers, Processors, Exporters tabs
    • Interactive charts with Min, Max, Mean statistics

  4. Logs: Agent-specific logs

    Agent Detail – Logs
    Agent Detail – Logs

    • Severity filtering (All Severities, Info, Error, etc.)
    • Search within logs
    • Time range selection (1h, 6h, 24h)

Topology Tab:

Agent Topology
Agent Topology

  • Visualize agents as interactive topology cards
  • Instance and Group view modes
  • Resource sidebar with Agent Groups tree
  • Per-agent metrics (Metrics, Logs, Throughput)

Groups Tab:

Agent Groups
Agent Groups

  • Organize agents into logical groups
  • Group details: Name, Agent count, Config, Created, Updated, Labels
  • Create, Edit, and Delete groups

Configs Tab:

Agent Configuration
Agent Configuration

  • YAML configuration editor with syntax highlighting
  • Live pipeline visualization (Receiver → Processor → Exporter)
  • Pipeline views for Traces, Metrics, and Logs
  • Validation status indicator

Inventory Manager

Inventory Manager Demo
Inventory Manager Demo

The Inventory Manager provides complete infrastructure discovery and relationship tracking.

Inventory Dashboard
Inventory Dashboard

Dashboard Tab:

  • Summary cards: Total Entities, Total Relations, Entity Types, Relation Types
  • Resource breakdown: Hosts, Containers, Kubernetes Pods, Services, Databases & Cache, Messaging Systems
  • All Entity Types with counts
  • Recent Entities list with type badges

Tree View Tab:

Inventory Tree View
Inventory Tree View

  • Hierarchical entity tree (cloud.region → host → services → containers)
  • Expand/Collapse all functionality
  • Entity search
  • Tree View and Category View toggle

Table View Tab:

Inventory Table – Entities
Inventory Table – Entities

  • Tabular view of all entities with sortable columns
  • Entity detail view with full attribute list

Inventory Table – Relations
Inventory Table – Relations

  • View all entity relationships
  • Source, Relation Type, and Target columns

#Configuration

Settings

Access settings via the Settings menu item.

Settings – Platform
Settings – Platform

Tabs:

  1. Platform: Platform URL and authentication settings
  2. Data Sources: Configure Prometheus, Loki, and Tempo connections
  3. AI: Configure AI assistant (OpenRouter API key, model, temperature, max tokens)
  4. Definitions: Define metric and label patterns
  5. Privacy: Privacy and data handling settings

Settings – Data Sources
Settings – Data Sources

Datasources

Default Datasources:

  • Prometheus (Observability Platform): Primary metrics source
  • Loki (Observability Platform): Primary logs source
  • Tempo (Observability Platform): Primary traces source

All data sources are automatically configured through the platform with endpoints pointing to the Observability Platform query APIs.

Definitions

Define how IyziTrace interprets your metrics:

Label Definitions:

  • Service Label Name: Label for service names (default: service_name)
  • Operation Label Name: Label for operation names (default: span_name)
  • Type Label Name: Label for operation types (default: span_kind)

Metric Definitions:

Add custom metrics for:

  • Latency metrics (e.g., http_request_duration_seconds)
  • Error metrics (e.g., http_requests_total{status="5xx"})
  • Throughput metrics (e.g., http_requests_total)

AI Configuration

API Key:

  • Enter your OpenRouter API key
  • Key is stored securely in Grafana
  • Required for AI Assistant features

Model Settings:

  • Model: Select AI model (GPT-4, Claude, DeepSeek, etc.)
  • Temperature: Controls randomness (0.0-1.0)
  • Max Tokens: Maximum response length

#Access Control

Teams

Teams Demo
Teams Demo

IyziTrace supports multi-tenancy through teams.

Teams Page
Teams Page

Creating a Team:

  1. Navigate to Teams
  2. Click Create Team
  3. Enter:
    • Team Name: Unique identifier
    • Display Name: Human-readable name
    • Description: Team purpose
  4. Click Save

Team Detail:

Team Detail
Team Detail

Page Permissions

Control which pages team members can access:

Team Pages
Team Pages

Available Pages:

  • Home
  • Overview
  • Service Map
  • Services
  • Traces
  • Logs
  • Exceptions
  • AI Assistant
  • Teams
  • Settings
  • Agent Manager
  • Inventory Manager

Permission Levels:

  • Admin: Can access all pages and manage teams
  • User: Can access assigned pages only
  • No Access: If a team has no page assignments, they see all pages (default behavior)

#Advanced Features

Service-Infrastructure Mapping

Auto-Discovery:

IyziTrace automatically maps services to infrastructure based on:

  1. Host Name Matching: If service and infrastructure share same host_name
  2. Cloud Region Matching: If they're in the same cloud_region

Manual Mapping:

For services that can't be auto-mapped:

  1. They appear in "Orphan Services" section
  2. Drag the service card
  3. Drop it on target infrastructure
  4. Mapping is saved persistently

Orphan Services

What are Orphan Services?

Services discovered in your telemetry but not mapped to any infrastructure:

  • Services without matching host_name
  • Services from external systems
  • Services in different regions
  • Manually instrumented services

Why Map Them?

Mapping orphan services:

  • Completes your topology view
  • Enables infrastructure-level filtering
  • Shows complete dependency graph
  • Improves resource attribution

Search and Filter

Global Search:

Each section supports search:

  • Real-time: Results update as you type
  • Case-insensitive: Matches regardless of case
  • Contains logic: Matches partial strings
  • Multi-field: Searches across multiple fields

#API Reference

IyziTrace exposes various APIs for programmatic access.

Datasource APIs

Prometheus Queries:

language-typescript typescript
import { getQueryData } from './api/provider/prometheus.provider';

const data = await getQueryData('up{job="api"}');

Tempo Queries:

language-typescript typescript
import { getQueryData } from './api/provider/tempo.provider';

const traces = await getQueryData('{}', startTime, endTime, limit);

Loki Queries:

language-typescript typescript
import { getQueryData } from './api/provider/loki.provider';

const logs = await getQueryData(
  '{service_name="api"}',
  startTime,
  endTime,
  limit
);

Settings APIs

Get Plugin Settings:

language-typescript typescript
import { getPluginSettings } from './api/service/settings.service';

const settings = await getPluginSettings();

Save Plugin Settings:

language-typescript typescript
import { savePluginSettings } from './api/service/settings.service';

await savePluginSettings({
  serviceInfraMapping: {...},
  aiConfig: {...}
});

Service Map APIs

Get Regions:

language-typescript typescript
import { getRegions } from './api/service/service-map.service';

const regions = await getRegions(filterModel);

Get Orphan Services:

language-typescript typescript
import { getOrphanServices } from './api/service/service-map.service';

const orphans = await getOrphanServices(filterModel);

AI APIs

Ask AI:

language-typescript typescript
import { askAI } from './api/service/ai.service';

const response = await askAI(
  'What services have high error rates?',
  context
);

#FAQ

Q: How do I start sending data to IyziTrace?

A: Use the Setup Wizard to configure your platform connection and data sources. Then configure your applications to send:

  • Traces to Tempo (via OTLP)
  • Logs to Loki
  • Metrics to Prometheus

Q: Why don't I see my services?

A: Ensure:

  1. Your datasources are connected (check Settings → Data Sources)
  2. Data is being sent to Prometheus/Tempo/Loki
  3. Metrics contain required labels (service_name, etc.)
  4. Check definitions in Settings → Definitions match your label names

Q: How do I map orphan services?

A: Drag the service from "Orphan Services" section and drop it on the target infrastructure card.

Q: Can I use IyziTrace without AI features?

A: Yes! AI Assistant is optional. All core features work without it.

Q: How do I manage OpenTelemetry agents?

A: Navigate to Agent Manager from the sidebar. You can view all agents, organize them into groups, create/edit configurations, monitor metrics, and view logs.

Q: What is the Inventory Manager?

A: The Inventory Manager automatically discovers and tracks all infrastructure entities (hosts, containers, services, cloud regions, etc.) and their relationships. It provides Dashboard, Tree View, and Table View for exploring your infrastructure.

Q: How are permissions enforced?

A: Permissions are enforced through team-based access control. Admins see everything; team users see only assigned pages.

Q: Can I export my data?

A: Yes:

  • Tables support CSV export
  • Traces can be exported as JSON
  • Use the datasource APIs to fetch raw data

Q: How do I troubleshoot missing infrastructure?

A: Check that:

  1. Prometheus is scraping __inv_base metric
  2. Host inventory is being collected
  3. Required labels (host_name, cloud_region) are present

Q: What OpenTelemetry version is supported?

A: IyziTrace supports OpenTelemetry 1.0+ and is compatible with OTLP protocol.

Q: Can I customize metric definitions?

A: Yes! Go to Settings → Definitions to add custom metric patterns.

Q: How do I configure alerts?

A: Alerts are managed through Grafana's native alerting system. Create alert rules based on your datasources.

#Troubleshooting

Common Issues

1. "No data found"

Symptoms: Empty pages, no services, no traces

Solutions:

  • Verify datasources are connected and healthy
  • Check that applications are sending data
  • Confirm time range includes data
  • Review datasource logs for errors

2. "Orphan services not disappearing after mapping"

Symptoms: Mapped services still show in orphan section

Solutions:

  • Refresh the page
  • Check plugin settings were saved
  • Verify mapping API call succeeded
  • Clear browser cache

3. "AI Assistant not responding"

Symptoms: AI chat shows errors or no response

Solutions:

  • Verify API key is configured
  • Check OpenRouter account has credits
  • Test API key in OpenRouter dashboard
  • Review browser console for errors

4. "Services not auto-mapping"

Symptoms: Expected services appear as orphans

Solutions:

  • Verify host_name label matches infrastructure
  • Check cloud_region matches
  • Ensure both service and infrastructure exist
  • Review auto-discovery logic in service-map.service.ts

5. "Agent Manager not showing agents"

Symptoms: Agent list is empty

Solutions:

  • Verify OpenTelemetry agents are configured with OpAMP
  • Check agent connectivity to the platform
  • Verify platform URL is correct in Settings
  • Review agent logs for connection errors

6. "Inventory showing no entities"

Symptoms: Inventory dashboard shows zero entities

Solutions:

  • Verify the platform is running and accessible
  • Check that telemetry data is being sent
  • Ensure infrastructure discovery is configured
  • Review platform logs for errors

Debug Mode

Enable debug logging:

language-javascript javascript
// In browser console
localStorage.setItem('debug', 'iyzitrace:*');

This will log detailed information about:

  • API calls
  • Data fetching
  • Rendering
  • State changes

Getting Help

For additional support:

  1. Check this documentation
  2. Review GitHub Issues
  3. Contact support team
  4. Join community discussions

#Navigation

Sidebar Menu
Sidebar Menu

IyziTrace provides a clean sidebar navigation with access to all modules:

  • 🏠 Home
  • 📊 Overview
  • 🔗 Service Map
  • 📈 Services
  • 📋 Traces
  • 📝 Logs
  • ⚠️ Exceptions
  • 🤖 AI Assistant
  • 👥 Teams
  • ⚙️ Settings
  • 🔧 Agent Manager
  • 📦 Inventory Manager
  • 🌓 Light Mode toggle

#Meta

Version: 2.0.0

License: Proprietary

Questions? Comments?

Send them to: [email protected]

#Start Observing in Minutes

No credit card required. Start your observability journey today!

Ready to get started?

  1. Install the IyziTrace plugin from Grafana Marketplace
  2. Run the Setup Wizard to configure platform and data sources
  3. Start sending telemetry data
  4. Explore your systems with powerful visualizations
  5. Manage your agents with the Agent Manager
  6. Track your inventory with the Inventory Manager

Need help? Contact us at [email protected]

#Legal & Compliance

©2026 IYZI Trace Inc. Built with ❤️ by the IyziTrace Team

Developer Reference

IyziTrace - Grafana App Plugin

IyziTrace is a comprehensive observability platform built as a Grafana app plugin, providing distributed tracing, service mapping, and log analysis capabilities.

#Features

  • Distributed Tracing: Explore and analyze distributed traces with flame graphs and timeline views
  • Service Map: Visualize service dependencies and interactions in real-time
  • Service Metrics: Monitor service performance with detailed metrics and charts
  • Log Analysis: Search and analyze application logs with advanced filtering
  • Log Pipelines: Process and transform logs with configurable pipelines (SigNoz-like feature)
  • TraceQL Support: Advanced trace querying with TraceQL language
  • Real-time Data: Live observability data from telemetry generators

#What are Grafana app plugins?

App plugins can let you create a custom out-of-the-box monitoring experience by custom pages, nested data sources and panel plugins.

#Quick Start

Prerequisites

  • Docker and Docker Compose
  • Node.js and pnpm

Running the Complete Stack

To run IyziTrace with real observability data, you have two options for data generation:

language-bash bash
# Start the observability platform with Tempo, Prometheus, Loki, and telemetry generators
docker compose -f configs/observability-platform/docker-compose.yml up -d

This will start:

  • Tempo (traces) - Distributed tracing backend
  • Prometheus (metrics) - Metrics collection and storage
  • Loki (logs) - Log aggregation system
  • OpenTelemetry Collectors - Data collection and routing
  • NGINX - Signal router for telemetry data
  • Telemetry Generators - Generate sample traces, metrics, and logs

Option 2: OpenTelemetry Demo

language-bash bash
# Start the OpenTelemetry demo with full microservices stack
docker compose -f configs/opentelemetry-demo/docker-compose.yml up -d

This will start:

  • Full Microservices Stack - Frontend, backend services, databases
  • Tempo (traces) - Distributed tracing backend
  • Prometheus (metrics) - Metrics collection and storage
  • Loki (logs) - Log aggregation system
  • Jaeger (alternative traces) - Alternative tracing backend
  • Load Generator - Simulates real user traffic
  • Real Application Data - More realistic and complex traces

Option 3: Both Platforms (Advanced)

You can run both platforms simultaneously for maximum data variety:

language-bash bash
# Start both platforms
docker compose -f configs/observability-platform/docker-compose.yml up -d
docker compose -f configs/opentelemetry-demo/docker-compose.yml up -d

Note: Both platforms use different ports to avoid conflicts.

2. Start IyziTrace Grafana Plugin

language-bash bash
# Start IyziTrace Grafana instance connected to the data sources
docker compose up -d

This will start:

  • Grafana with IyziTrace plugin
  • Connected to both observability platform and OpenTelemetry demo datasources
  • Pre-configured with Prometheus, Tempo, and Loki datasources from both platforms

3. Access the Application

  • Grafana UI: http://localhost:3000
  • IyziTrace Plugin: Navigate to the IyziTrace app in Grafana
  • Service Map: View real-time service dependencies
  • Traces: Explore distributed traces from telemetry generators or microservices
  • Logs: Analyze application logs from Loki
  • Metrics: Monitor performance metrics from Prometheus

4. Stop the Stack

language-bash bash
# Stop IyziTrace
docker compose down

# Stop observability platform (if running)
docker compose -f configs/observability-platform/docker-compose.yml down

# Stop OpenTelemetry demo (if running)
docker compose -f configs/opentelemetry-demo/docker-compose.yml down

#Development Setup

Frontend Development

  1. Install dependencies

    language-bash bash
    pnpm install

  2. Build plugin in development mode and run in watch mode

    language-bash bash
    pnpm run dev

  3. Build plugin in production mode

    language-bash bash
    pnpm run build

  4. Run the tests (using Jest)

    language-bash bash
    # Runs the tests and watches for changes, requires git init first
pnpm run test

# Exits after running all the tests
pnpm run test:ci

  5. Run the E2E tests (using Playwright)

    language-bash bash
    # Spins up a Grafana instance first that we tests against
pnpm run server

# If you wish to start a certain Grafana version. If not specified will use latest by default
GRAFANA_VERSION=11.3.0 pnpm run server

# Starts the tests
pnpm run e2e

  6. Run the linter

    language-bash bash
    pnpm run lint

# or

pnpm run lint:fix

Development with Observability Data

For development with real observability data, you can choose between:

Option A: Observability Platform

language-bash bash
# Start observability platform
docker compose -f configs/observability-platform/docker-compose.yml up -d

# Start IyziTrace in development mode
pnpm run dev

# In another terminal, start Grafana with the plugin
pnpm run server

Option B: OpenTelemetry Demo

language-bash bash
# Start OpenTelemetry demo
docker compose -f configs/opentelemetry-demo/docker-compose.yml up -d

# Start IyziTrace in development mode
pnpm run dev

# In another terminal, start Grafana with the plugin
pnpm run server

This setup allows you to:

  • Develop the plugin with hot reloading
  • Test against real telemetry data (traces, metrics, logs)
  • Debug with live telemetry generators or microservices
  • Monitor service interactions in real-time
  • Choose between simple telemetry generators or complex microservices

Distributing your plugin

When distributing a Grafana plugin either within the community or privately the plugin must be signed so the Grafana application can verify its authenticity. This can be done with the @grafana/sign-plugin package.

Note: It's not necessary to sign a plugin during development. The docker development environment that is scaffolded with @grafana/create-plugin caters for running the plugin without a signature.

#Initial steps

Before signing a plugin please read the Grafana plugin publishing and signing criteria documentation carefully.

@grafana/create-plugin has added the necessary commands and workflows to make signing and distributing a plugin via the grafana plugins catalog as straightforward as possible.

Before signing a plugin for the first time please consult the Grafana plugin signature levels documentation to understand the differences between the types of signature level.

  1. Create a Grafana Cloud account.
  2. Make sure that the first part of the plugin ID matches the slug of your Grafana Cloud account.
    • You can find the plugin ID in the plugin.json file inside your plugin directory. For example, if your account slug is acmecorp, you need to prefix the plugin ID with acmecorp-.
  3. Create a Grafana Cloud API key with the PluginPublisher role.
  4. Keep a record of this API key as it will be required for signing a plugin

#Signing a plugin

Using Github actions release workflow

If the plugin is using the github actions supplied with @grafana/create-plugin signing a plugin is included out of the box. The release workflow can prepare everything to make submitting your plugin to Grafana as easy as possible. Before being able to sign the plugin however a secret needs adding to the Github repository.

  1. Please navigate to "settings > secrets > actions" within your repo to create secrets.
  2. Click "New repository secret"
  3. Name the secret "GRAFANA_API_KEY"
  4. Paste your Grafana Cloud API key in the Secret field
  5. Click "Add secret"

Push a version tag

To trigger the workflow we need to push a version tag to github. This can be achieved with the following steps:

  1. Run npm version <major|minor|patch>
  2. Run git push origin main --follow-tags

#Learn more

Below you can find source code for existing app plugins and other related documentation.

#Git Workflow Commands

Complete Development Workflow

This section covers the complete workflow from creating a feature branch to merging back to dev.

1. Creating a new branch from dev

language-bash bash
# Switch to dev branch
git checkout dev

# Pull latest changes from dev
git pull origin dev

# Create and switch to new branch from dev
git checkout -b feature/overview

# Push the new branch to GitHub and set up tracking
git push -u origin feature/overview

2. Creating Pull Request with GitHub CLI

Create and manage pull request:

language-bash bash
# Create pull request from feature branch to dev
gh pr create --base dev --head feature/your-feature-name \
  --title "Your PR Title" \
  --body "## Description
Your detailed PR description here

## Changes
- Change 1
- Change 2

## Testing
- [x] Test case 1
- [x] Test case 2"

# Check PR status
gh pr status

# View PR details
gh pr view [PR_NUMBER]

3. Merging and cleanup

language-bash bash
# Merge PR and delete remote branch (can be done by reviewer)
gh pr merge [PR_NUMBER] --merge

# Switch back to dev branch
git checkout dev

# Pull latest changes including your merged PR
git pull origin dev

git branch -m feature/service-map merged-feature/service-map
git push origin merged-feature/service-map
git push origin --delete feature/service-map
language-bash bash

   # DOWN - Tüm projeler
   docker compose -f /Users/gokhansipahi/projects/iyzitrace/iyzitrace-platform/iyzitrace/docker-compose.yaml down --volumes --remove-orphans && \
   docker compose -f /Users/gokhansipahi/projects/iyzitrace/iyzitrace-platform/iyzitrace-observability-platform/docker-compose.yml down --volumes --remove-orphans && \
   docker compose -f /Users/gokhansipahi/projects/iyzitrace/iyzitrace-platform/iyzitrace-opentelemetry-demo/docker-compose.yml down --volumes --remove-orphans && \

   # UP - Tüm projeler
   docker compose -f /Users/gokhansipahi/projects/iyzitrace/iyzitrace-platform/iyzitrace/docker-compose.yaml up --force-recreate --detach && \
   docker compose -f /Users/gokhansipahi/projects/iyzitrace/iyzitrace-platform/iyzitrace-opentelemetry-demo/docker-compose.yml up --force-recreate --detach

   cd /Users/gokhansipahi/projects/iyzitrace/iyzitrace-platform/iyzitrace-observability-platform && \
   make up && \

   cd /Users/gokhansipahi/projects/iyzitrace/iyzitrace-platform/iyzitrace && \
   pnpm run dev
